| 品牌 : | mks | 型号 : | 653B |
| 结构形式 : | 垂直板式 | 3C阀门类别 : | 工业 |
| 订货号 : | 111 | 加工定制 : | 否 |
| 货号 : | 1211 | 材质 : | 不锈钢 |
| 连接形式 : | 法兰 | 适用介质 : | 各种高腐蚀化学介质 |
| 压力环境 : | 常压 | 工作温度 : | 常温 |
| 标准 : | 美标 | 流动方向 : | 单向 |
| 驱动方式 : | 伺服 | 零部件及配件 : | 阀杆 |
| 用途 : | 调节 | 类型(通道位置) : | 直通式 |
| 口径 : | DN50 | 公称通径 : | 50 |
| 安装尺寸 : | 50 | 规格 : | 50 |
| 产品介绍 |

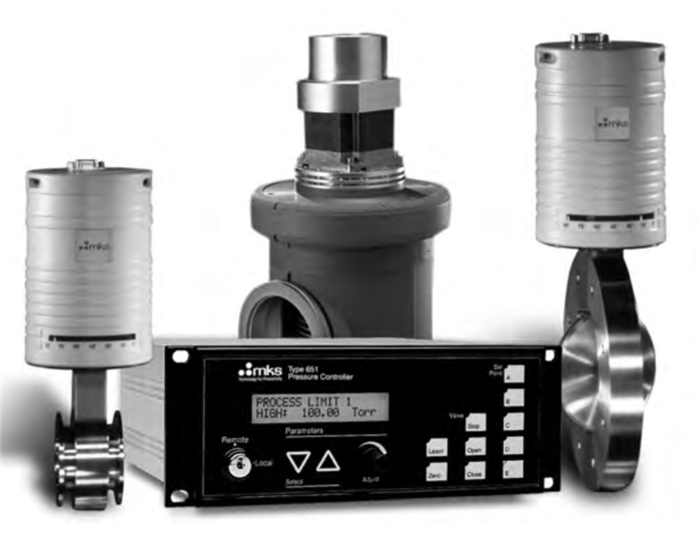

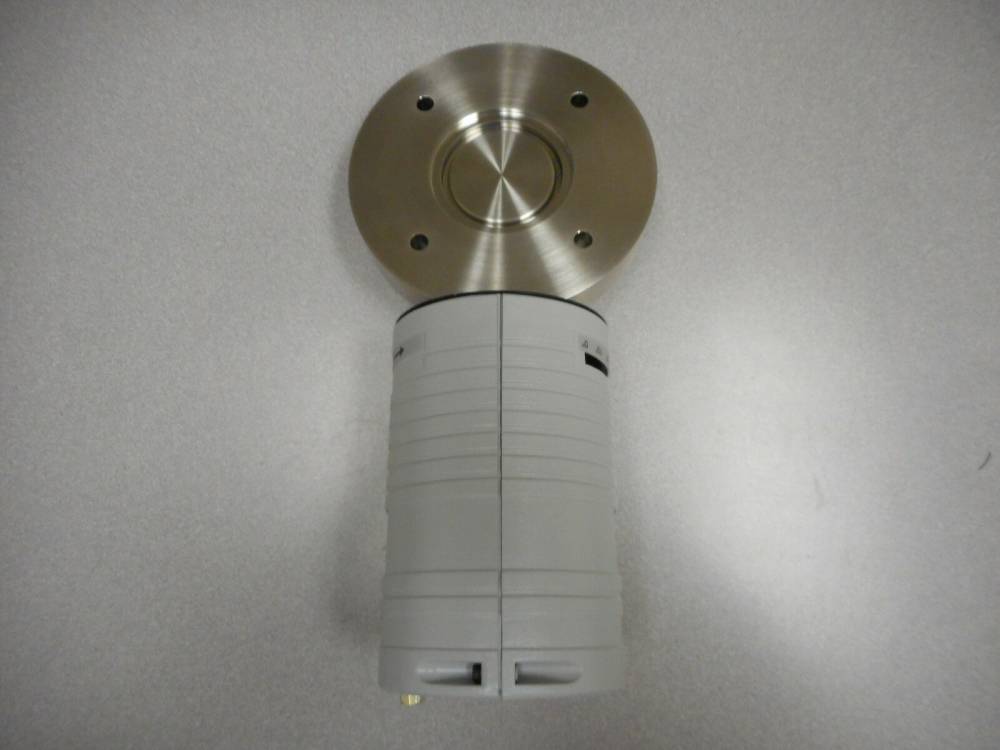

Type 653 The Type 653’s high speed motor and gear/driver assembly provides fast response to a given set point to quickly achieve desired pressure and increase system throughput. High accuracy is attained by micro-stepping the flapper to give more precise control, and no drift, of pressure at the desired set point. The 653 has sufficient torque to operate sealing valves up to four inches and non-sealing valves to 12 inches to prevent clogging from contamination buildup. The valve body can be heated up to 150°C (using optional sealing materials) for operation in high temperature applications and processes. The Type 653 has a flapper position indicator to identify valve angle during system troubleshooting, is available in a variety of sizes and flange styles, and is compatible with MKS Type 651 and 1651 Controllers.
653B-2-2-1 653B-2-2-2 653B-60-2-1 653B-60-2-1 653B-3-2-1 653B-3-2-2 653B-3-3-1 653B-3-3-2 653B-4-3-1 653B-4-3-2 653B-4-4-1 653B-4-4-2 653B-6-4-1 653B-6-6-2 653B-8-6-2 653B-8-8-2 653B-10-10-2 653B-20-2CF-1 653B-20-2CF-2 653B-1-2CF-1 653B-1-2CF-2 653B-2-3CF-1 653B-2-3CF-2 653B-2-4CF-1 653B-2-4CF-2 653B-3-6CF-1 653B-3-6CF-2 653B-4-6CF-1 653B-4-6CF-2 653B-6-8CF-2 653B-8-10CF-2 |
