品牌:爱发科
起订:1台
供应:100台
| 产品特性 : | 热销 | 类型 : | 气体捕集泵 |
| 品牌 : | 爱发科 | 型号 : | VD30C/ VDN301 |
| 材质 : | 铸铁 | 用途 : | 管道泵 |
| 原理 : | 滑片泵 | 真空度 : | 高真空度 |
| 驱动方式 : | 电动 | 性能 : | 耐磨 |
| 输送介质 : | 油泵 | 功率 : | 1.5 |
| 极限压力 : | 0.67 | 外形尺寸 : | 1300/9.8/13.0 |
| 泵轴位置 : | 边立式 | 抽气速率 : | 8 |
| 抽气量 : | 30m3/h | 重量 : | 58 |
| 电压 : | 200～240 / 380～415 | 排出口径 : | VG40 equivalency / KF40 (optional) |
| 流量 : | 30 | 规格 : | VD30C/ VDN301 |

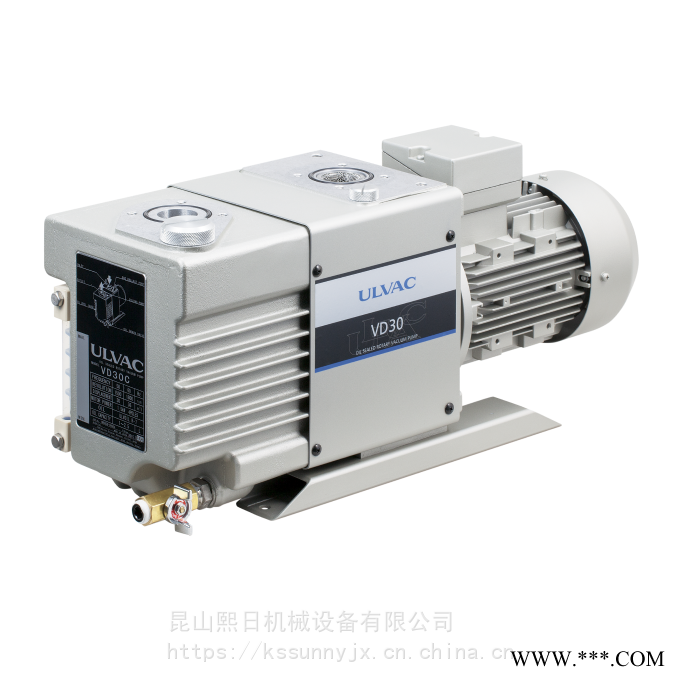

油回转真空泵
VD 系列
VD30C(日本产) / VDN301(中国产)
ULVAC
VD系列Ver.C是装载了ULVAC原创的 率(IE3)多电压马达的油回转真空泵。双级旋转叶片式油回转真空泵能达到较低的极限压力，优化设计实现了泵的低噪音运行，配件种类充实，用途非常广泛。
特点
采用ULVAC原装 （IE3）多电压电机
支持200至240 V / 380至460 V的宽幅电压。采用强制加油方式
即使在大气压附近，排气速度也是稳定的。 大气和真空间反复切换的选择。特殊用途也可应用。
除标准品外，还有3种型号（A型，B型和H型），可用于特殊应用。
用途
蒸发设备・溅射设备・离子镀膜设备
分析设备・检漏设备
气体交换・液体注入
真空干燥・冷冻干燥・真空脱气・真空隔热
真空吸附・真空成型
其他各种真空设备
规格
| Model | VD30C | VD40C | VD60C | VD90C | |||||||
| Designed pumping speed m3/h /L/min / cfm | 50 Hz | 30/500/17.66 | 40/670/23.54 | 60/1000/35.31 | 90/1500/52.97 | ||||||
| 60 Hz | 36/600/21.29 | 48/800/28.25 | 72/1200/42.38 | 108/1800/63.57 | |||||||
| Ultimate pressure Pa/Torr/mbar *1 | GP close | 0.67/5×10-3/6.7×10-3 | |||||||||
| GP open | 6.7/5×10-2/6.7×10-2 | ||||||||||
| Maximum water vapor tolerance Pa/Torr/mbar | GP open | 50 Hz | 1300/9.8/13.0 | 1360/10.2/13.6 | 1320/9.9/13.2 | 970/7.3/9.7 | |||||
| 60 Hz | 1400/10.5/14.0 | 1760/13.2/17.6 | 2800/21.0/28.0 | 2820 *2/21.2/28.2 | |||||||
| Maximum water vapor capacity g/h | GP open | 50 Hz | 190 | 270 | 430 | 480 | |||||
| 60 Hz | 250 | 410 | 1100 | 1650 *2 | |||||||
| Motor | Type | Totally enclosed fan cooled 3 phase induction motor | |||||||||
| Energy efficiency class | IE3 | ||||||||||
| kw/HP(number of poles) | 1.5(4) | 1.5(4) | 2.2(4) | 3.7(4) | |||||||
| Voltage *4 | 50 Hz | 200～240 / 380～415 | |||||||||
| 60 Hz | 200～240 / 380～460 | ||||||||||
| Oil | ULVOIL R-7 | ||||||||||
| Oil capacity L | 1.0～2.5 | 2.5～4.0 | |||||||||
| Cooling method | Air cooled | ||||||||||
| Inlet | VG40 equivalency / KF40 (optional) | VG50 equivalency / KF50 (optional) | |||||||||
| Outlet | VG40 equivalency / KF40 (optional) | ||||||||||
| Weight kg | 58 | 60 | 90 | 113 | |||||||
| External dimensions W×D×H mm | 210×660×324 | 210×680×324 | 280×761×371 | 280×831×371 | |||||||
| Applicable standard | CE | ||||||||||
| Standard accessory | A dose of oil, a set of manual | ||||||||||
| Recommended oil mist trap (Optional) *5 | TM201: for low load operation TM401: for high load operation | TM401: for low load operation TM-2: for high load operation | |||||||||
| Options | Oil mist trap, other oil types, gas ballast valve, ISO flange, explosion-resistant motor, special type for special application (spec A, B and H) | ||||||||||
*1 Measured with a Pirani gauge. (Apprx. 6.7X10-2Pa when measured with a McLeod vacuum gauge.)
*2 VD90C is not allowed the continuous operation in the inlet pressure at 1,000Pa or more. VD90C maximum water vapor tolerance / maximum water vapor capacity (in the continuous operation) : 1000Pa / 600g/h
*3 Increased safety explosion-resistant motor and pressure proof explosion-resistant motor are available as an option.
*4 Factory shipment setup is 200V class Δ delta connection. Please change it to Y connection if working voltage is 400V class.
*5 High load operation means repeat pumping down between atmospheric pressure and vacuum in short term or long time operation at 10,000 Pa (75 Torr) or higher.
