品牌:普发pfeiffer
起订:1台
供应:100台
| 产品特性 : | 稳定 | 是否进口 : | 否 |
| 产地 : | 德国 | 加工定制 : | 否 |
| 品牌 : | 普发pfeiffer | 型号 : | Hepta 100P |
| 订货号 : | PN: PUV12422A | 货号 : | PN: PUV12422A |
| 用途 : | 真空捕集 | 尺寸 : | 40*120 |
| 电源电压 : | 380 | 是否跨境货源 : | 否 |

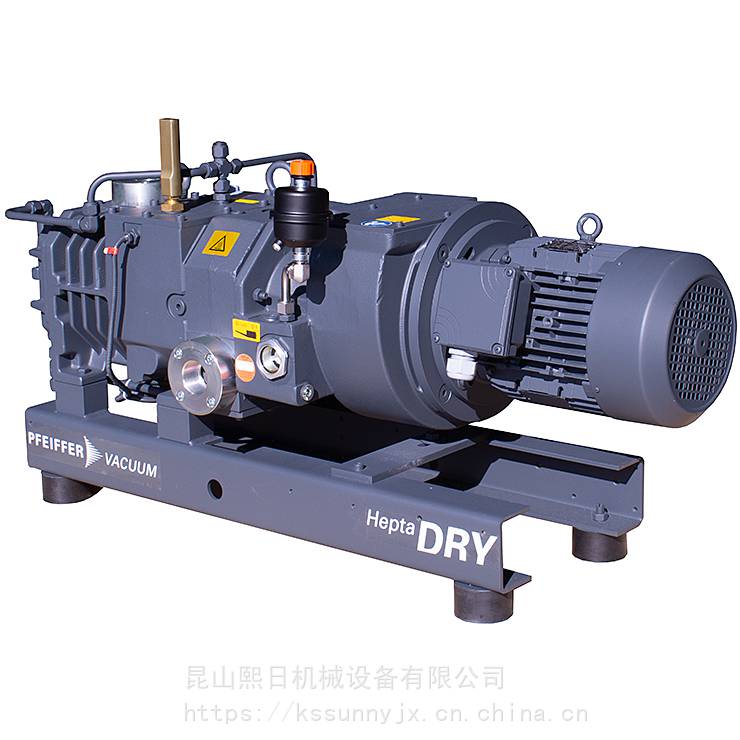

Pfeiffer Adixen Hepta 100P High-performance Screw Pump. Pumping Speed 76.5 cfm. PN: PUV12422A
德国普发 Adixen Hepta 100P螺杆真空泵维修 苏州上海南通无锡扬州镇江杭州常州衢州绍兴温州普发真空泵维修保养
The Pfeiffer Adixen Hepta 100P is a high performance screw pump with a pumping speed of 76.5 cfm (130 m3/h) with a main voltage of 220/380 60 hz. 3 phase. Comes with lubricant, silencer, non-return valve, protective strainer and operating instructions. Used for applications in the low and medium vacuum range. It is an ideal solution for all areas in which oil-free vacuum is required. Due to its internal compression, it has been shown to lower energy costs. The Hepta 100P is equipped with a temperature switch in the pump housing. Temperature monitoring prevents the vacuum pump from overheating and possibly starting up. To dissipate the heat arising from compression of the gases, the cooling chambers must be connected to an external water supply.
The Hepta 100P can be used for pumping gases and gas mixtures. It can also transport a limited amount of surge fluid, which can enter the pump through process errors. Here at Ideal Vacuum we have used this pump in combination with the Pfeiffer OptaLine booster blower pumps for building high throughput vacuum systems with excellent results. For a complete instruction manual on this Hepta 100P screw pump, download the .pdf below at the red and yellow rectangle below.
- FEATURES
High-performance screw pump with a pumping speed of 76.5 cfm
For mains voltage: 220-480, 60 Hz, 3-Phase
Ideal solution for all areas in which oil-free vacuum is required
Lower energy costs thanks to internal compression
For applications in the low and medium vacuum
Dry screw pump with intake strainer
Non-return valve, outlet side
Water cooling with thermostatic valve and thermometer
Temperature switch in housing
Oil-lubricated axial face seals
Oil charge, D1
The screw pumps work according to the screw principle: Two parallel bearing-supported screw rotors turn in opposite direction in the cylinder. The medium to be conveyed is thus enclosed in the space between the screw rotors and the housing and is transported to the gas exhaust point, compressed and expelled by means of the turning motion. An advantage of this pump type is that it can be operated at every intake pressure between atmosphere and ultimate pressure. Due to the contact-free operation of the vacuum pump, no operating fluid, such as oil or water, are needed in the working chamber. An adapter flange, non-return valve and/or silencer can be attached to the gas exhaust point, depending on the application.
