品牌:普发
起订:1台
供应:100台
| 品牌 : | 普发 | 是否进口 : | 否 |
| 产地 : | 德国 | 加工定制 : | 否 |
| 型号 : | pfeifferA100L | 电源电压 : | 380V |
| 用途 : | 抽真空 | 尺寸 : | 334*224*667cm |
Adixen Alcatel A100L 阿尔卡特真空泵保养 扬州真空泵维修 合肥真空泵维修
ALCATEL阿尔卡特ACP15真空泵维修,ALCATEL阿尔卡特ACP15真空泵维修厂家 提供全国范围内法国ALCATEL阿尔卡特真空泵维修保养服务. 阿尔卡特真空泵简介: 法国ALCATEL机械泵是ALCATEL的主要真空设备。到目前为止，ALCATEL生产的机械真空泵已逾30万，抽速从0.5l/s到30l/s。ALCATEL提供各种类型的机械泵：标准型、化学防腐型、CP型、IS型，应用于检漏、冷冻干燥、化工分馏、微电子工业、分析仪器、冰箱空调生产线等各种行业。 以下我维修保养过的阿尔卡特真空泵型号: ALCATEL阿尔卡特单级旋片油润真空泵1004A,1012A,1030,1033,1060,1063 ALCATEL阿尔卡特双级旋片油润真空泵 2002A,2004A,2008A,2012A,2020A,2033A,2060A,2063A,2100A ALCATEL阿尔卡特双级旋片油润真空泵I系2002I, 2005I, 2010I, 2015I, 2021I; ALCATEL阿尔卡特SD系列2005SD, 2010SD, 2021SD, 2021SD, 2033SD, 2063SD, 2100SD; ALCATEL阿尔卡特C1系列2005C1, 2010C1, 2021C1, 2033C1, 2063C1, 2100C1; ALCATEL阿尔卡特C2系列2010C,22021C2,2033C2,2063C2; ALCATEL阿尔卡特H1系列205H1,2015H1,2033H1,2063H1; ALCATEL阿尔卡特RHV 系列 RSV151，RSV151B,RSV301，RSV301B,RSV601，RSV601B,RSV1002,RSV1502，RSV2000 ALCATEL阿尔卡特干泵（dry pump）:ADP122,ADS602P ADS602H ADS1202P ADS1202H ADS1802P ADS1802H 以上型号未列举完全,如未找到您所要求的型号请直接与我们电话联系! 服务：拥有的维修技术人员及检测设备，并长期提供真空泵技术指导及修理、维护、保养、检测、咨询等服务；

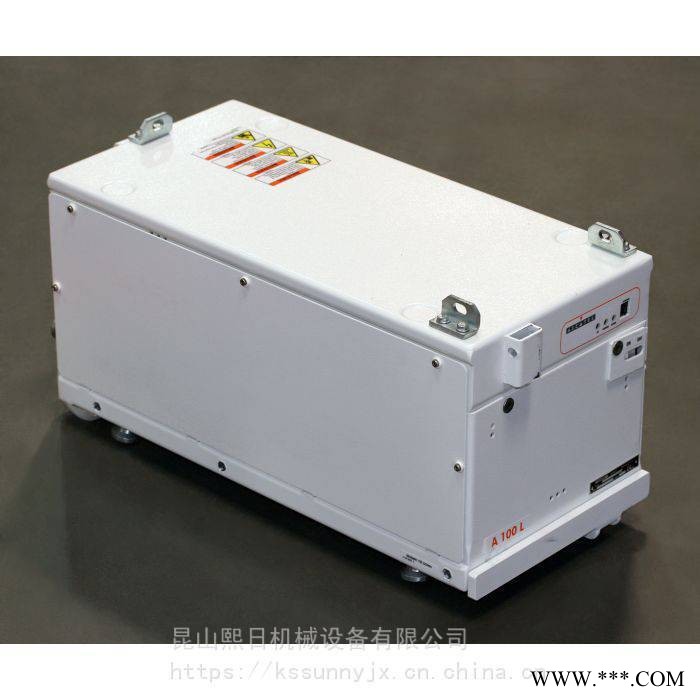

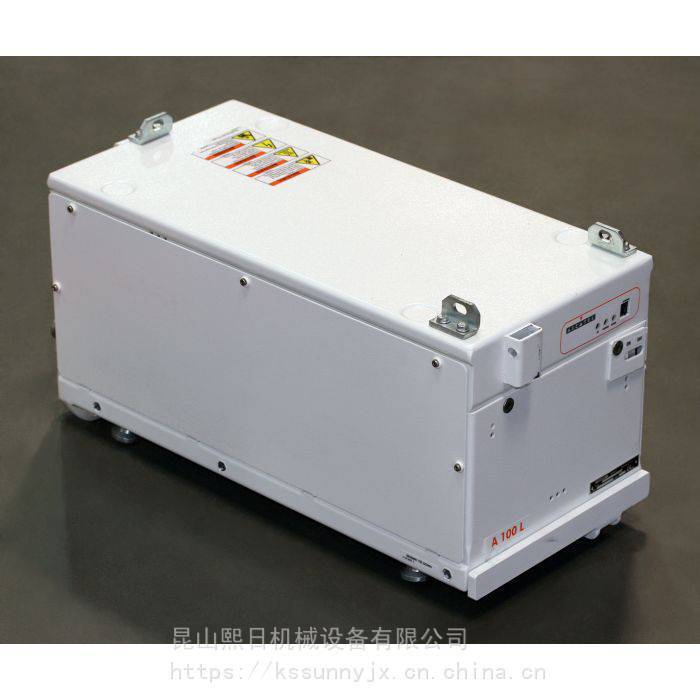

Adixen Alcatel A100L iPUP Semiconductor Dry Vacuum Pump - REBUILT
The pump is designed for applications that require the pumping of clean (dust-free) and non-corrosive gases. Examples are:
Instrumentation
Gas analysis
Electronic microscope
X-ray spectrometer
Leak detection
Surface analyzer
Research and development
Semiconductor fabrication
Load lock and transfer chamber pumping
Wafer back pumping
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Rotation speed | 100 Hz / 6,000 rpm |
| Peak pumping speed | 95 m3/h / 1,583 l/min / 63 cfm |
| Ultimate pressure (w/out N2 purge) | 1.2 x 10-2 mbar / 9 mTorr |
| Max. continuous inlet pressure | 50 Torr |
| Supply voltage | 200 - 208 V 3-phase 50/60Hz |
| Max. continuous power (at max. pressure) | 2.5 kW |
| Power consumption at ultimate pressure | 1.8 kW |
| Average sound level at full speed | 55 dBA |
| Guaranteed sound level at full speed | 58 dBA |
| Ambient temperature | 15 - 50°C |
| Water flow | min. 100 l/h |
| Water temperature | min. 10°C / max. 25°C |
| Gear box fluid capacity | 150 cm3 cc |
| Weight (w/out hand held display module) | 220.4 lbs / 100 kg |
| Inlet flange | DN 50 ISO-KF |
| Exhaust flange | DN 25 ISO-KF |
| Secondary exhaust port | DN 25 ISO-KF |
| Interstage flange | DN 25 ISO-KF |
| Max. exhaust flow | 13 cfm |
| Vibration level at the enclosure baseplate sidehole (4 to 400 Hz Spectrum) | |
| Acceleration | <0.1 g |
| Displacement | <1.5 μm |
| Speed | <1 mm/s |
