品牌:莱宝
起订:1台
供应:100台
| 品牌 : | 莱宝 | 型号 : | DV450 |
| 规格 : | DV450 DV650 | 是否进口 : | 否 |
| 产地 : | 德国 | 电源电压 : | 380V |
| 加工定制 : | 否 | 材质 : | 铸铁 |
| 类别 : | 加注机 | 是否定制 : | 否 |
| 产品特性 : | 德国 | 用途 : | 抽真空 |
| 尺寸 : | 334*238*552cm |
Leybold DRYVAC DV 450 - REBUILT
LAI
ADD TO WISH LIST ADD TO COMPARE
| Weight | 1500 lbs |
|---|---|
| Motor Power | 17.4 HP |
| Pumping Speed | 450 m3/h |
| Ultimate Pressure | 5 x 10-3 mbar |

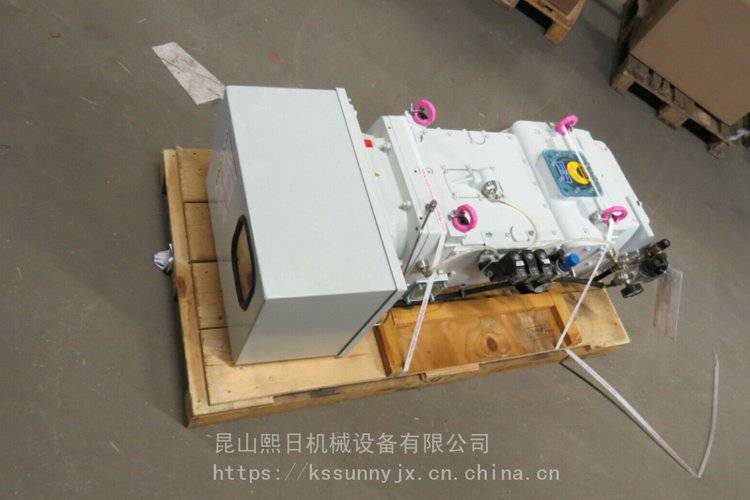

Leybold DRYVAC DV 450 Dry Vacuum Pump - REBUILT
The DRYVAC is a new family or dry compressing vacuum pumps. Depending on the application the pumps are available with various equipment components. The DRYVAC series specially is developed for photovoltaic, display and process industry applications. All versions of the DRYVAC family are water cooled, very compact and can simply be mounted to various vacuum systems, so particularly with regard to the well-proven RUVAC WH, WS and WA series.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Inlet Connection | DN 100 ISO-K |
| Outlet Connection | DN 63 ISO-K |
| Max Pumping Speed | 450 m3/h |
| Ultimate total pressure w/o gas ballast | 5.0 x 10-3 mbar / 3.8 x 10-3 Torr |
| Ultimate total pressure w/ gas ballast | 5.0 x 10-2 mbar / 3.8 x 10-2 Torr |
| Water Vapor Tolerance | ≥ 60.0 mbar / ≥ 45.0 Torr |
| Water Vapor Capacity | 15.0 kg/h |
| Operating fluid gear box | Leybonol LVO 120 |
| Operating Fluid Capacity | 1.2 l |
| Noise Level with silencer | 67 db(A) |
| Noise Level with exhaust pipe | 65 db(A) |
| Cooling water consumption | 360 l/h |
| Permissable cooling water pressure | 3 - 7 bar |
| Permissable cooling water temperature | +5 to +35°C |
| Cooling water consumption | G 1/2", inside thread |
| Mains connection | 3-ph, 380-480V, 50/60 Hz |
| Motor Rating | 13.0 kW / 17.4 HP |
| Power consumption at ultimate pressure | ≤ 5.3 kW / ≤ 7.1 HP |
| Motor protection rating | IP 54 |
| Admissible ambient temperature | +5 to +50°C |
| Weight | 620 kg |
Leybold DRYVAC DV 450 Dry Vacuum Pump - REBUILT Part no. 112045V15-1 Pumping speed: 450 m3/h Ultimate pressure: ≤ 5 x 10-3 mbar Operation with int. frequency converter: 380-480 V, 50/60 Hz Operating fluid: LEYBonOL LVO 210 Part no. 112045V20-1 Pumping speed: 450 m3/h Ultimate pressure: ≤ 5 x 10-3 mbar Operation with int. frequency converter: 380-480 V, 50/60 Hz Operating fluid: LEYBonOL LVO 410 Part no. 112045V30-1 Pumping speed: 450 m3/h Ultimate pressure: ≤ 5 x 10-3 mbar Operation with int. frequency converter: 380-480 V, 50/60 Hz Operating fluid: LEYBonOL LVO 410
莱宝真空泵维修 DV450真空泵保养
