| 产品特性 : | 稳定 | 是否进口 : | 否 |
| 产地 : | 德国 | 加工定制 : | 否 |
| 品牌 : | 莱宝leybold | 型号 : | D16B |
| 订货号 : | 160141V150-1 | 货号 : | 160141V150-1 |
| 用途 : | 真空捕集 | 尺寸 : | 30*65 |
| 电源电压 : | 220-380 | 是否跨境货源 : | 否 |
Leybold D16B Trivac Rotary Vane Dual Stage, Hydrocarbon, Heater, Customized Outlet,120-240VAC 160141V150-1
岛津光谱仪真空泵维修 赛默飞光谱仪真空泵D16B维修 电镜扫描仪真空泵D16B维修

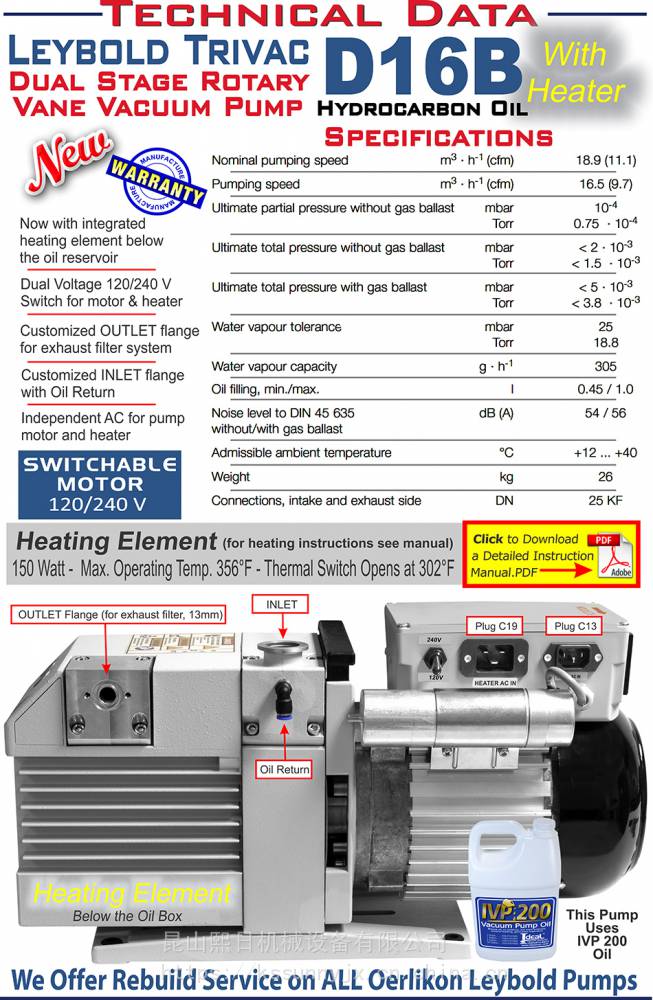

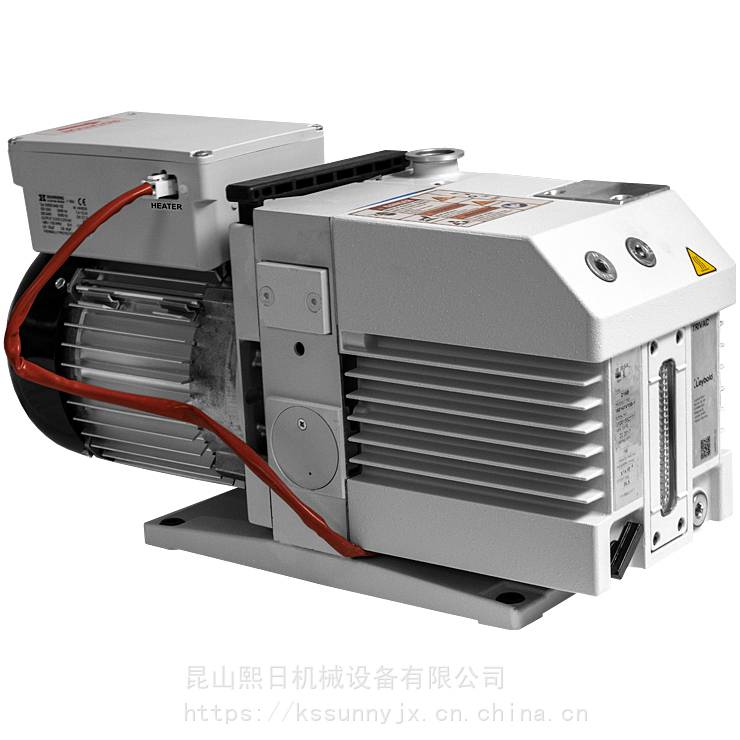

This NEW Leybold D16 D16B Trivac with built in heater is a durable vacuum pump with a superior vapor handling capability. This model also has a customized OUTLET exhaust port for a 13 mm exhaust filter. The Leybold D16 D16B dual stage rotary vane mechanical vacuum pump offers an excellent ultimate pressure of 1x10-4 Torr. This pump is prepared for use with Hydrocarbon Oils. This pump is commonly used for vacuum furnace evacuation, backing turbomolecular pumps, backing diffusion pumps, rotary evaporation, refrigeration system evacuation, epoxy degassing, vacuum sterilization, backing mass spectrometers, freeze drying, vacuum centrifugal applications, vacuum distillation, space research, and other vacuum processes. These Leybold D16 D16B vacuum pumps have a pumping speed displacement of 16.5 CFM. This pump is NEW and comes with a Leybold warranty. Parts, oils, exhaust filers and accesories for this pump are located on this website.
Comes with Attached Heater Below Oil Box:
This Leybold D16B Vacuum Pump contains a heater element below the oil pan. It consists of two integrated heating elements with an output of 75W each and a rated voltage of 120V. The elements are connected in parallel or series depending on the position of the 120/240V selector switch. When reaching temperatures above 150 °C (302 Degrees), both heating circuits will be switched off by the integrated thermo switch. For complete Operating Instructions on the heater and the pump click the yellow label .pdf in the ad below.
