品牌:长城
起订:1台
| 加工定制 : | 是 | 品牌 : | 长城 |
| 型号 : | 1250E | 别名 : | Bending machine |
| 用途 : | 钣金加工 | 电动机功率 : | 1500W |
| 外形尺寸 : | 1270MM | 重量 : | 150KG |

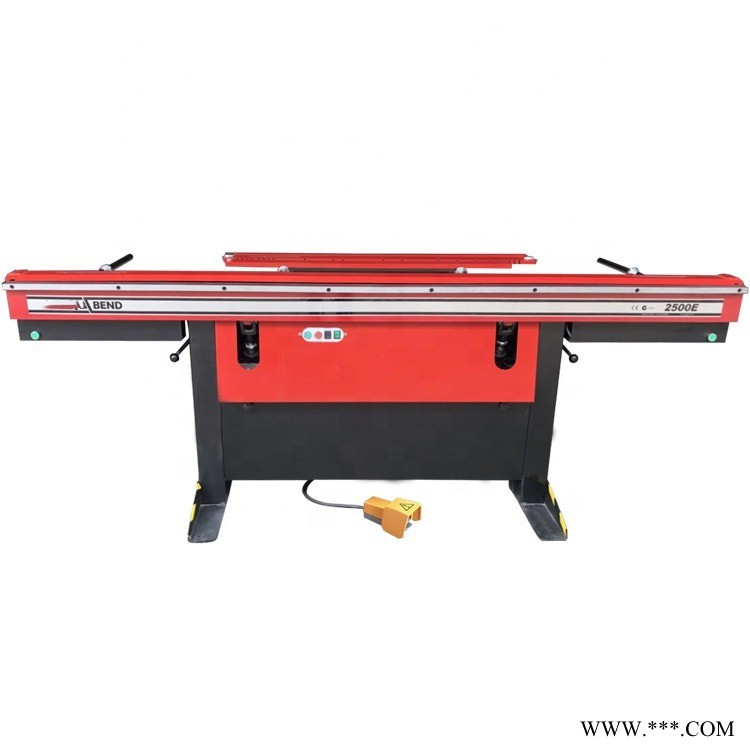

MAGNABEND Magnetic folding machines
QUICK INQUIRY
The MAGNABEND is a unique, versatile and easy to use folding machine. Suitable for folding many types of sheet, including aluminium, copper, steel, stainless steel, coated materials, etc. There are models in the range from 1000 to 3200 mm working length.
Electromagnetic clamping system
A powerful electromagnet pulls on the upper beam, so that the sheet is clamped. As Clamping takes place across the entire width, there is minimal deviation. Because the upper bar is always a flat strip, closed tubes or high boxes can be folded. The clamping bar of the MAGNABEND can be easily removed and replaced for a different tool, such as square or round bars. A 230V power supply is required.
Standard:
Wide clamping bar
Narrow clamping bar
Slotted clamping bar for shallow boxes
Segmented clamping bar (fingers)
Sheet support
Foot pedal (models 1250E and up)
Stops
Technical specifications:
650E, Capacity: 625 x 1,6 mm at 400 N/mm²
1000E, Capacity: 1000 x 1,6 mm at 400 N/mm²
1250E, Capacity: 1250 x 1,6 mm at 400 N/mm²
2000E, Capacity: 2000 x 1,6 mm at 400 N/mm²
2500E, Capacity: 2500 x 1,6 mm at 400 N/mm²
3200E, Capacity: 3200 x 1,2 mm at 400 N/mm²
Options:
– Speciale Clamping bar (round, square, with gaps etc.)
– Foot pedal (650E – 1000E)
