品牌:DE
起订:1000个
供应:10个
立即购买
| 品牌 : | DE | 型号 : | BV-404TC |
| 材质 : | 不锈钢 | 连接形式 : | 对夹 |
| 适用介质 : | 食用油 | 公称通径 : | DN15-DN80 |
| 结构形式 : | 浮动球球阀 | 压力环境 : | 常压 |
| 工作温度 : | 常温 | 标准 : | 3A |
| 流动方向 : | 换向 | 驱动方式 : | 手动 |
| 类型(通道位置) : | 三通式 | 订货号 : | BV-404TC |
| 货号 : | BV-404TC | 3C阀门类别 : | 卫生 |
DIRECT MOUNT 3-WAY/4-WAY CITY FILLED BALL VALVE

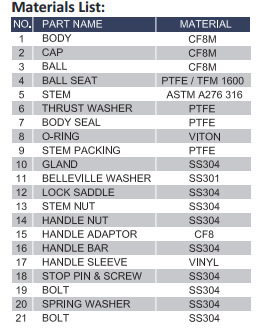

Body Material ASTM CF8M, DIN 1.4408
Size Range 1/2" - 2" (DN15~DN50) Pressure Rating 1000PSI (PN63)
Size Range 2-1/2" - 3" (DN65~DN80) Pressure Rating 800PSI (PN50)
End Connec?0?9on Tri-clamp Standards ANSI B16.34
Temperature Range -4°F to 350°F (-20°C to 180°C) with PTFE seats
Applica?0?9on Limita?0?9on Referring to below diagram, there is a limita?0?9on to the differen?0?9al pressure between flow P2 and P1.Where P2>P1, leakage from P2 to P1 could occur. The e logic follows for other L/T flow patterns.

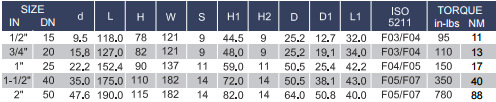

Note: Torque measured at ambient temperature with no loading; safety factor is not included. Select size(s) may be under development, please consult with us for details.
