| 材质 : | 不锈钢 | 产品类别 : | 潜水泵 |
| 尺码 : | 见规格 | 功能 : | 高扬程 耐腐蚀 |
| 货号 : | QJ | 款式 : | 潜水式 |
| 类别 : | 潜水 | 品牌 : | 鄂泉 |
| 主要用途 : | 适用于从深井撮地下水、也可用 于河流。 | 箱装数量 : | 1 |
| 重量 : | 20-2800KG |

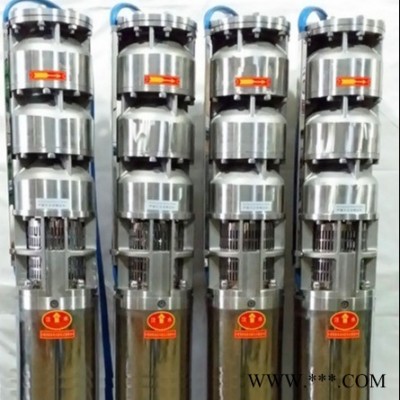

一、不锈钢深井潜水泵概述：
QJ型井用潜水电泵是根据标准设计的节能产品，广泛用于农田灌溉、工矿企业的供排水和高原、山区的人、畜用水。该型泵由QJ潜水泵和YQS型潜水电机组成一体潜入水下进行工作。具有结构简单、体积小、重量轻、安装、维修方便，运行安全、可靠、 节能等特点。其特点是：电机、水泵组成一体、结构简单、且安装拆卸方便、安装占地面积少。
二、QJ深井潜水泵设计要点：
不锈钢深井泵运行可靠、经久耐用、使用方便、功率大、故障少，维修费用低等。只要在电机中注满清水，即可正常运转。
三、不锈钢高扬程潜水泵应用及特点：
QJ型井用潜水电泵是从深井中提取地下水的成套机具，广泛应用于农田灌溉、工矿企业的供排水及高原、山区的畜用水。QJR型井用热水潜水泵，采用特殊材质和结构，用于提取地下热水。另外本公司根据用户需要生产海水、矿山等特殊场合用潜水电泵。该泵主机由QJ型潜水泵和YQS型潜水电泵机组成。潜入水下工作，具有结构紧凑、体积小、重量轻、安装、使用、维护方便，运输安全可靠、节约能源等优点。
四、结构与工作条件：
1、电源：三相交流电，电压380伏，频率50赫兹。
2、水源
（1）水温 a:QJ型≤20℃ b: QJR型≤120℃
（2）水中含沙量（重量比）不得超过0.01%，氯离子不得超过400毫克/升。
（3）PH=6.5∽8.5
深井潜水泵精密铸造 深井泵精密铸造
不锈钢深井泵进水节 不锈钢深井泵底座
由多级离心式叶轮分段串联组成。泵级间由扁拉筋或螺栓连接，每段之间由橡胶（或铜）轴承支撑，泵的顶端没有逆止阀。YQS型潜水电机为密闭充水式三相异步电机，绕组采用耐水连续密封结构，导轴承和推力轴承均为水润滑轴承；电机上部安装有防砂机构，阻止泥沙进入电机内控。
1、主机：潜水泵和潜水电机。
2、管路：输水管、弯管、橡胶垫、安装夹板等。
3、电缆：电缆和电缆接头材料。
4、起动和保护装置。
五、不锈钢深井泵主要性能参数：
150QJ(R)10-150
150适用zui小井径150毫米：
QJ(R) 型号特征：井用潜水电泵（热水）
10 额定流量：10立方米/小时
150/ 额定扬程：150米.
5 | 85 | 3 | 7.9 | 50 | 3×4 | DZ15-40 | ||
56 | 150QJ5-100/14 | 100 | 3 | 7.9 | 3×4 | DZ15-40 | ||
57 | 150QJ5-150/21 | 150 | 4 | 10.26 | 3×4 | DZ15-40 | ||
58 | 150QJ5-200/28 | 200 | 5.5 | 13.74 | 3×6 | DZ15-40 | ||
59 | 150QJ5-250/35 | 250 | 7.5 | 18.5 | 3×6 | DZ15-40 | ||
60 | 150QJ5-300/42 | 300 | 9.2 | 22.12 | 3×10 | DZ15-40 | ||
61 | 150QJ10-50/7 | 10 | 50 | 3 | 7.9 | 3×4 | DZ15-40 | |
62 | 150QJ10-78/11 | 78 | 4 | 10.26 | 3×4 | DZ15-40 |
序号 | 潜水泵型号 | 流量(m3/h) | 扬程(m) | 电机功率(KW) | 额定电流(A) | 出水管直径 mm | 配套电缆规格 | 控制开关型号 |
63 | 150QJ10-100/14 | 10 | 100 | 5.5 | 13.74 | 50 | 3×4 | DZ15-40 |
64 | 150QJ10-128/18 | 128 | 7.5 | 18.5 | 3×6 | DZ15-40 | ||
65 | 150QJ10-150/21 | 150 | 7.5 | 18.5 | 3×6 | DZ15-40 | ||
66 | 150QJ10-178/25 | 178 | 9.2 | 22.12 | 3×6 | DZ15-40 | ||
67 | 150QJ10-200/28 | 200 | 11 | 26.28 | 3×10 | DZ15-40 | ||
68 | 150QJ10-250/35 | 250 | 13 | 30.87 | 3×10 | DZ15-40 | ||
69 | 150QJ10-300/42 | 300 | 15 | 35.62 | 3×16 | DZ15-40 | ||
70 | 150QJ20-26/4 | 20 | 26 | 3 | 7.9 | 3×4 | DZ15-40 | |
71 | 150QJ20-33/5 | 33 | 3 | 7.9 | 3×4 | DZ15-40 | ||
72 | 150QJ20-39/6 | 39 | 4 | 10.26 | 3×4 | DZ15-40 | ||
73 | 150QJ20-46/7 | 46 | 5.5 | 13.74 | 3×4 | DZ15-40 | ||
74 | 150QJ20-52/8 | 52 | 5.5 | 13.74 | 3×4 | DZ15-40 | ||
75 | 150QJ20-59/9 | 59 | 5.5 | 13.74 | 3×4 | DZ15-40 | ||
76 | 150Q220-65/10 | 65 | 7.5 | 18.5 | 3×4 | DZ15-40 | ||
77 | 150QJ20-72/11 | 72 | 7.5 | 18.5 | 3×4 | DZ15-40 | ||
78 | 150QJ20-78/12 | 78 | 7.5 | 18.5 | 3×6 | DZ15-40 | ||
79 | 150QJ201-85/13 | 85 | 9.2 | 22.12 | 3×6 | DZ15-40 | ||
80 | 150QJ20-91/14 | 91 | 9.2 | 22.12 | 3×6 | DZ15-40 | ||
81 | 150QJ20-98/15 | 98 | 9.2 | 22.12 | 3×6 | DZ15-40 | ||
82 | 150QJ20-104/16 | 104 | 11 | 26.28 | 3×6 | DZ15-40 | ||
83 | 150QJ20-111/17 | 111 | 11 | 26.28 | 3×6 | DZ15-40 | ||
84 | 150QJ20-117/17 | 117 | 13 | 30.87 | 3×6 | DZ15-40 | ||
85 | 150QJ20-124/19 | 124 | 13 | 30.87 | 3×6 | DZ15-40 | ||
86 | 150QJ20-130/20 | 130 | 13 | 30.87 | 3×6 | DZ15-40 | ||
87 | 150QJ20-137/21 | 137 | 15 | 35.62 | 3×6 | DZ15-40 | ||
88 | 150QJ20-143/22 | 143 | 15 | 35.62 | 3×6 | DZ15-40 | ||
89 | 150QJ20-150/23 | 150 | 15 | 35.62 | 3×6 | DZ15-40 | ||
90 | 150QJ20-156/24 | 156 | 15 | 35.62 | 3×10 | DZ15-40 | ||
91 | 150Q220-163/25 | 163 | 15 | 35.62 | 3×10 | DZ15-40 | ||
92 | 150QJ25-24/3 | 25 | 24 | 3 | 7.9 | 65 | 3×4 | DZ15-40 |
93 | 150QJ25-32/4 | 32 | 4 | 10.3 | 3×4 | DZ15-40 |
序号 | 潜水泵型号 | 流量(m3/h) | 扬程 (m) | 电机功率(KW) | 额定电流(A) | 出水管直径 mm | 配套电缆规格 | 控制开关型号 |
94 | 150QJ25-40/5 | 25 | 40 | 5.5 | 13.7 | 65 | 3×4 | DZ15-40 |
95 | 150QJ25-48/6 | 48 | 5.5 | 13.7 | 3×4 | DZ15-40 | ||
96 | 150QJ25-56/7 | 56 | 7.5 | 18.5 | 3×4 | DZ15-40 | ||
97 | 150QJ25--64/8 | 64 | 7.5 | 18.5 | 3×4 | DZ15-40 | ||
98 | 150QJ25-72/9 | 72 | 9.2 | 18.5 | 3×6 | DZ15-40 | ||
99 | 1509325-80/10 | 80 | 9.2 | 22.1 | 3×6 | DZ15-40 | ||
100 | 150QJ25-88/11 | 88 | 11 | 26.3 | 3×6 | DZ15-40 | ||
101 | 150QJ25-96/12 | 96 | 11 | 26.3 | 3×6 | DZ15-40 | ||
102 | 150QJ25-104/13 | 104 | 13 | 30.9 | 3×6 | DZ15-40 | ||
103 | 150QJ25-112/14 | 112 | 13 | 30.9 | 3×6 | DZ15-40 | ||
104 | 150QJ25-120/15 | 120 | 15 | 35.6 | 3×6 | DZ15-40 | ||
105 | 150QJ25-128/16 | 128 | 15 | 35.6 | 3×6 | DZ15-40 | ||
106 | 150QJ25-136/17 | 136 | 18.5 | 44.0 | 3×10 | DZ15-40 | ||
107 | 150QJ25-144/18 | 144 | 18.5 | 44.0 | 3×10 | DZ15-40 | ||
108 | 150QJ25-152/19 | 152 | 18.5 | 44.0 | 3×10 | DZ15-40 | ||
109 | 150QJ32-18/3 | 32 | 18 | 3 | 7.9 | 65 | 3×4 | DZ15-40 |
110 | 150QJ32-24/4 | 24 | 4 | 10.26 | 3×4 | DZ15-40 | ||
111 | 150QJ32-30/5 | 30 | 5.5 | 13.74 | 3×4 | DZ15-40 | ||
112 | 150QJ32-36/6 | 36 | 5.5 | 13.74 | 3×4 | DZ15-40 | ||
113 | 150QJ32-42/7 | 42 | 7.5 | 18.5 | 3×6 | DZ15-40 | ||
114 | 150QJ32-54/9 | 54 | 9.2 | 22.12 | 3×6 | DZ15-40 | ||
115 | 150QJ32-66/11 | 66 | 11 | 26.28 | 3×6 | DZ15-40 | ||
116 | 150QJ32-72/12 | 72 | 13 | 30.87 | 3×6 | DZ15-40 | ||
117 | 150QJ32-84/14 | 84 | 13 | 30.87 | 3×6 | DZ15-40 | ||
118 | 150QJ32-90/15 | 90 | 15 | 35.62 | 3×6 | DZ15-40 | ||
119 | 150QJ32-96/16 | 96 | 15 | 35.62 | 3×6 | DZ15-40 | ||
120 | 150QJ32-108/18 | 108 | 18.5 | 44.0 | 3×10 | DZ15-40 | ||
121 | 150QJ50-6/1 | 50 | 6 | 3 | 7.9 | 80 | 3×4 | DZ15-40 |
122 | 150QJ50-12/2 | 12 | 4 | 10.26 | 3×4 | DZ15-40 | ||
123 | 150QJ50-18/3 | 18 | 5.5 | 13.74 | 3×4 | DZ15-40 | ||
124 | 150QJ50-24/4 | 24 | 7.5 | 18.5 | 3×6 | DZ15-40 | ||
125 | 150Qj50-30/5 | 30 | 9.2 | 22.12 | 3×6 | DZ15-40 |
序号 | 型号 | 流量(m3/h) | 扬程 (m) | 电机功率(KW) | 额定电流(A) | 出水管直径 mm | 配套电缆规格 | 控制开关型号 |
126 | 150QJ501-36/6 | 50 | 36 | 9.2 | 22.12 | 80 | 3×6 | DZ15-40 |
127 | 150QJ501-42/7 | 42 | 11 | 26.28 | 3×6 | DZ15-40 | ||
128 | 150QJ50-48/8 | 48 | 13 | 30.87 | 3×6 | DZ15-40 | ||
129 | 150QJ50-54/9 | 54 | 15 | 35.62 | 3×6 | DZ15-40 | ||
130 | 150QJ50-60/10 | 60 | 18.5 | 44.0 | 3×6 | DZ15-40 | ||
131 | 150QJ50-66/11 | 66 | 18.5 | 44.0 | 3×6 | DZ15-40 | ||
132 | 150QJ50-72/12 | 72 | 18.5 | 44.0 | 3×10 | DZ15-40 | ||
133 | 175QJ10-30/2 | 10 | 30 | 3 | 7.8 | 50 | 3×4 | DZ15-40 |
134 | 175QJ10-45/3 | 45 | 4 | 10.1 | 3×4 | DZ15-40 | ||
135 | 175QJ10-60/4 | 60 | 5.5 | 13.6 | 3×4 | DZ15-40 | ||
136 | 175QJ10-90/6 | 90 | 7.5 | 18.4 | 3×6 | DZ15-40 | ||
137 | 175QJ10-105/7 | 105 | 9.2 | 22.1 | 3×6 | DZ15-40 | ||
138 | 175QJ10-135/9 | 135 | 11 | 26.1 | 3×6 | DZ15-40 | ||
139 | 175QJ20-26/2 | 20 | 26 | 3 | 7.8 | 50 | 3×4 | DZ15-40 |
140 | 175QJ20-39/3 | 39 | 4 | 10.1 | 3×4 | DZ15-40 | ||
141 | 175QJ20-52/4 | 52 | 5.5 | 13.6 | 3×6 | DZ15-40 | ||
142 | 175QJ20-65/5 | 65 | 7.5 | 18.4 | 3×6 | DZ15-40 | ||
143 | 175QJ20-78/6 | 78 | 7.5 | 18.4 | 3×6 | DZ15-40 | ||
144 | 175QJ20-91/7 | 91 | 9.2 | 22.1 | 3×6 | DZ15-40 | ||
145 | 175QJ20-104/8 | 104 | 11 | 26.1 | 3×6 | DZ15-40 | ||
146 | 175QJ20-117/9 | 117 | 13 | 30.1 | 3×6 | DZ15-40 | ||
147 | 175QJ20-130/10 | 130 | 13 | 30.1 | 3×6 | DZ15-40 | ||
148 | 175QJ20-143/11 | 143 | 15 | 34.7 | 3×6 | DZ15-40 | ||
149 | 175QJ20-156/12 | 156 | 15 | 34.7 | 3×6 | DZ15-40 | ||
150 | 175QJ20-169/13 | 169 | 18.5 | 42.6 | 3×10 | QJ03-18.5 | ||
151 | 175QJ20-182/14 | 182 | 18.5 | 42.6 | 3×10 | QJ03-18.5 | ||
152 | 175QJ20-195/15 | 195 | 22 | 49.7 | 3×16 | QJ03-22 | ||
153 | 175QJ20-208/16 | 208 | 22 | 49.7 | 3×16 | QJ03-22 | ||
154 | 175QJ20-221/17 | 221 | 22 | 49.7 | 3×16 | QJ03-22 | ||
155 | 175QJ20-234/18 | 234 | 25 | 56.5 | 3×16 | QJO3-25 | ||
156 | 175QJ20-247/19 | 247 | 9525 | 56.5 | 3×16 | QJ03-25 |
序号 | 型号 | 流量(m3/h) | 扬程(m) | 电机功率(KW) | 额定电流(A) | 出水管直径 mm | 配套电缆规格 | 控制开关型号 |
157 | 175QJ32-24/2 | 32 | 24 | 4 | 10.1 | 65 | 3×4 | DZ15-40 |
158 | 175QJ32-36/3 | 36 | 5.5 | 13.6 | 3×4 | DZ15-40 | ||
159 | 175QJ32-48/4 | 48 | 7.5 | 18.4 | 3×4 | DZ15-40 | ||
160 | 175QJ32-60/5 | 60 | 9.2 | 22.1 | 3×6 | DZ15-40 | ||
161 | 175QJ-32-72/6 | 72 | 11 | 26.1 | 3×6 | DZ15-40 | ||
162 | 175QJ32-84/7 | 84 | 13 | 30.1 | 3×6 | DZ15-40 | ||
163 | 175QJ32-96/8 | 96 | 15- | 34.7 | 3×6 | DZ15-40 | ||
164 | 175QJ32-120/10 | 120 | 18.5 | 42.6 | 3×10 | QJ03-18.5 | ||
165 | 175QJ32-144/12 | 144 | 22 | 49.7 | 3×10 | QJ03-22 | ||
166 | 175QJ32-168/14 | 168 | 25 | 56.5 | 3×16 | QJ03-25 | ||
167 | 175QJ40-24/2 | 40 | 24 | 5.5 | 13.6 | 65 | 3×4 | DZ15-40 |
168 | 175QJ40-36/3 | 36 | 7.5 | 18.4 | 3×4 | DZ15-40 | ||
169 | 175QJ40-48/4 | 48 | 9.2 | 22.1 | 3×6 | DZ15-40 | ||
170 | 175QJ40-60/5 | 60 | 11 | 26.1 | 3×6 | DZ15-40 | ||
171 | 175QJ40-72/6 | 72 | 13 | 30.1 | 3×6 | DZ15-40 | ||
172 | 175QJ40-84/7 | 84 | 15 | 34.7 | 3×6 | DZ15-40 | ||
173 | 175QJ40-96/8 | 96 | 18.5 | 42.6 | 3×10 | QJ03-18.5 | ||
174 | 175QJ40-108/9 | 108 | 99 | 49.7 | 3×10 | QJ03-22 | ||
175 | 175QJ40-120/10 | 120 | 99 | 49.7 | 3×10 | QJO3-22 | ||
176 | 175QJ40-132/11 | 132 | 25 | 56.5 | 3×16 | QJ03-25 | ||
177 | 175QJ50-24/2 | 50 | 24 | 5.5 | 13.6 | 80 | 3×4 | DZ15-40 |
178 | 175QJ50-36/3 | 36 | 9.2 | 22.1 | 3×4 | DZ15-40 | ||
179 | 175QJ50-48/4 | 48 | 11 | 26.1 | 3×6 | DZ15-40 | ||
180 | 175QJ50-60/5 | 60 | 13 | 30.1 | 3×6 | DZ15-40 | ||
181 | 175QJ50-84/7 | 84 | 18.5 | 42.6 | 3×10 | QJ03-18.5 | ||
182 | 175QJ50-96/8 | 96 | 22 | 49.7 | 3×10 | QJ03-22 | ||
183 | 175QJ50-108/9 | 108 | 25 | 56.5 | 3×16 | QJ03-25 | ||
184 | 200QJ20-40/3 | 20 | 40 | 4 | 10.1 | 50 | 3×4 | DZ15-40 |
185 | 200QJ20-54/4 | 54 | 5.5 | 13.6 | 3×4 | DZ15-40 | ||
186 | 200QJ20-67/5 | 67 | 7.5 | 18 | 3×4 | DZ15-40 | ||
187 | 200QJ20-81/6 | 81 | 7.5 | 18 | 3×4 | DZ15-40 | ||
188 | 200QJ20-93/7 | 93 | Q9 | 21.7 | 3×6 | DZ15-40 | ||
189 | 200QJ20-108/8 | 108 | 11 | 25.8 | 3×6 | DZ15-40 | ||
190 | 200QJ20-121/9 | 121 | 13 | 29.8 | 3×6 | DZ15-40 |
序号 | 潜水泵型号 | 流量(m3/h) | 扬程 (m) | 电机功率(KW) | 额定电流(A) | 出水管直径 mm | 配套电缆规格 | 控制开关型号 |
191 | 2000J20-133/10 | 20 | 133 | 15 | 33.9 | 50 | 3×6 | DZ15-40 |
192 | 2000J20-148/11 | 148 | 15 | 33.9 | 3×6 | DZ15-40 | ||
193 | 2000320-175/13 | 175 | 18.5 | 41.6 | 3×10 | QJOs-18.5 | ||
194 | 2000J20-202/15 | 202 | 22 | 48.2 | 3×16 | QJ03-22 | ||
195 | 2000J20-243/18 | 243 | 25 | 54.5 | 65 | 3×16 | QJ03-25 | |
196 | 20003201-270/20 | 270 | 30 | 65.4 | 3×25 | QJ03-30 | ||
197 | 2000320-297/22 | 297 | 30 | 65.4 | 3×25 | 0303-30 | ||
198 | 2000J20-338/25 | 338 | 37 | 79.7 | 3×25 | QJ03-37 | ||
199 | 200Q320-350/26 | 350 | 37 | 79.7 | 3×35 | Q303-37 | ||
200 | 2000320-363/27 | 363 | 37 | 79.7 | 3×35 | QJ03-37 | ||
201 | 200QJ20-400/30 | 400 | 45 | 96.9 | 3×50 | JJB-45 | ||
202 | 2000J20-450/34 | 450 | 45 | 96.9 | 3×50 | JJB-45 | ||
203 | 2000332-26/2 | 32 | 26 | 4 | 10.1 | 65 | 3×4 | DZ15-40 |
204 | 2000J32-39/3 | 39 | 5.5 | 13.6 | 3×4 | DZ15-40 | ||
205 | 200Q332-52/4 | 52 | 7.5 | 18 | 3×4 | DZ15-40 | ||
206 | 2000J32-65/5 | 65 | 11 | 25.8 | 3×6 | DZ15-40 | ||
207 | 200QJ32-78/6 | 78 | 11 | 25.8 | 3×6 | DZ15-40 | ||
208 | 200QJ32-91/7 | 91 | 13 | 29.8 | 3×6 | DZ15-40 | ||
209 | 200QJ32-104/8 | 104 | 15 | 33.9 | 3×6 | DZ15-40 | ||
210 | 200Q32-130/10 | 130 | 18.5 | 41.6 | 3×10 | QJ03-18.5 | ||
211 | 200Q32-156/12 | 156 | 25 | 54.5 | 3×16 | QJ3-25 | ||
212 | 2000J32-195/15 | 195 | 30 | 65.4 | 3×16 | QJ03-30 | ||
213 | 200QJ32-234/18 | 234 | 37 | 79.7 | 3×25 | QJ03-37 | ||
214 | 200QJ32-247/19 | 247 | 37 | 79.7 | 3×25 | 0303-37 | ||
215 | 200Q332-260/20 | 260 | 45 | 96.9 | 3×25 | 3318-45 | ||
216 | 200Q332-286/22 | 286 | 45G | 96.9 | 3×35 | JJ-B-45 | ||
217 | 200Q340-26/2 | 40 | 26 | 5.5 | 13.6 | 3×4 | DZ15-40 | |
218 | 200QJ40-39/3 | 39 | 7.5 | 18 | 3×4 | DZ15-40 | ||
219 | 200Q340-52/4 | 52 | q9 | 21.7 | 3×6 | DZ15-40 | ||
220 | 200Q340-65/5 | 65 | 11 | 25.8 | 3×6 | DZ15-40 | ||
221 | 200Q340-78/6 | 78 | 15 | 33.9 | 3×6 | DZ15-40 | ||
222 | 200QJ40-104/8 | 104 | 18.5 | 41.6 | 3×10 | QJ03-18.5 | ||
223 | 200Q340-117/9 | 117 | 22 | 48.2 | 3×10 | QJ03-22 | ||
224 | 200QJ340-143/11 | 143 | 25 | 54.5 | 3×10 | QJ03-25 |
18121353183
