进口卫生级球阀 德国洛克LOCKE

进口卫生级球阀产品概述：

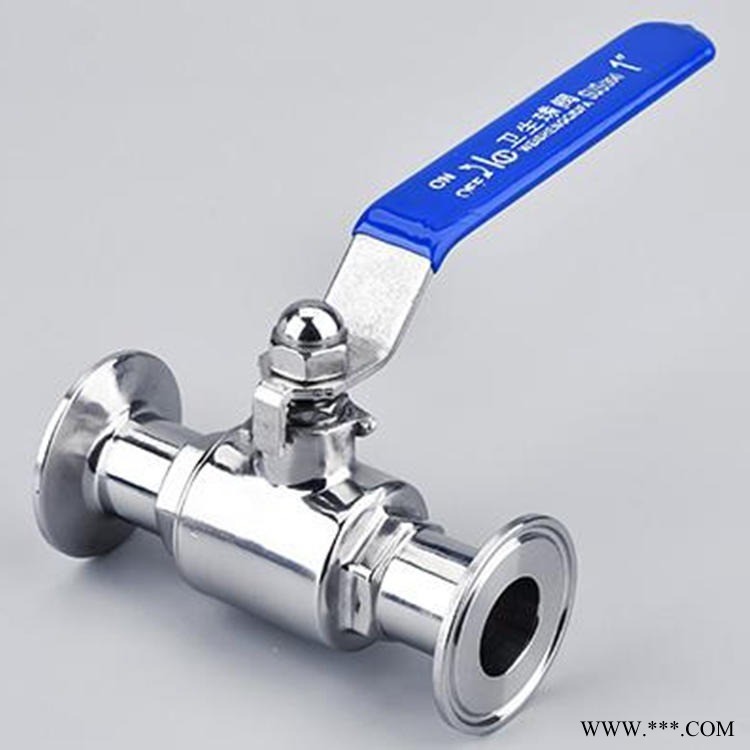

德国《LOCKE》洛克--进口卫生级球阀(Sanitary ball valve)内外用 抛光设备处理，达到表面精密度要求,有快装、焊接、螺纹连接方式，广泛用于食品、饮料、制药、乳制品、啤酒以及精细化工。它具有旋转90度的动作，旋塞体为球体，有圆形通孔或通道通过其轴线。球阀在管路中主要用来做切断、分配和改变介质的流动方向，它只需要用旋转90度的操作和很小的转动力矩就能关闭严密。

进口卫生级球阀产品特点：

（1）采用316不锈钢精制而成。

（2）流道内壁240Grit抛光，保持流体畅通无阻。

（3）采用的全包PTFE没有死角，保证卫生。

（4）无支架与执行器一体式连接。

进口卫生级球阀性能范围：

规    格 DN15——DN150、1〞— 6〞Ф12.7—Ф152.4

连    接 快装、焊接、螺纹（供选）

标    准 ISO、DIN、IDF、SMS、3A等

材    质 不锈钢sus304和sus316L

质    量 产品内外用 抛光设备处理，达到表面精密度要求

密 封 圈 EPDM、NBR、PTFE

包    装 纸箱/木箱包装/防震膜

工作压力 1.0Mpa

工作温度 —10℃+150℃

应用范围 广泛适用于食品、酿酒、饮料、乳制品、精细化工制药及生物工程等众多行业

Introduction of imported sanitary ball valve products:

The imported sanitary ball valve is treated with high-grade polishing equipment to meet the requirements of surface precision. It is widely used in food, beverage, pharmaceutical, dairy, beer and fine chemical industry. It has the action of rotating 90 degrees, and the cock body is a sphere with a circular through hole or channel passing through its axis. Ball valve is mainly used to cut off, distribute and change the flow direction of the medium in the pipeline. It only needs to rotate 90 degrees and a small torque to close tightly.

Features of imported sanitary ball valve:

(1) It is made of 316 stainless steel.

(2) The inner wall of the flow channel is 240 grid polished to keep the flow unimpeded.

(3) There is no dead angle in all package PTFE used to ensure hygiene.

(4) There is no integrated connection between bracket and actuator.

Performance range of imported sanitary ball valve:

Specifications DN15——DN150、1〞— 6〞 Ф 12.7— Ф one hundred and fifty-two point four

connect Quick assembly, welding, thread (optional)

Standards ISO, DIN, IDF, SMS, 3a, etc

texture of material Stainless steel SUS304 and SUS316L

Quality The products are treated with high-grade polishing equipment inside and outside to meet the requirements of surface precision

seal ring EPDM、NBR、PTFE

packing Carton / wooden packing / shockproof film

working pressure 1.0Mpa

working temperature — 10℃+150℃

Scope of application It is widely used in food, wine, beverage, dairy products, fine chemical, pharmaceutical and bioengineering industries
