| 品牌 : | 德国洛克 | 型号 : | LOCKE |
| 材质 : | 黄铜 | 类型(通道位置) : | 先导式 |
| 连接形式 : | 螺纹 | 适用介质 : | 蒸汽 |
| 流动方向 : | 双向 | 用途 : | 截止 |
| 公称通径 : | DN6～50 | 工作温度 : | -5~180℃ |
| 使用压力 : | 0～200Mpa |

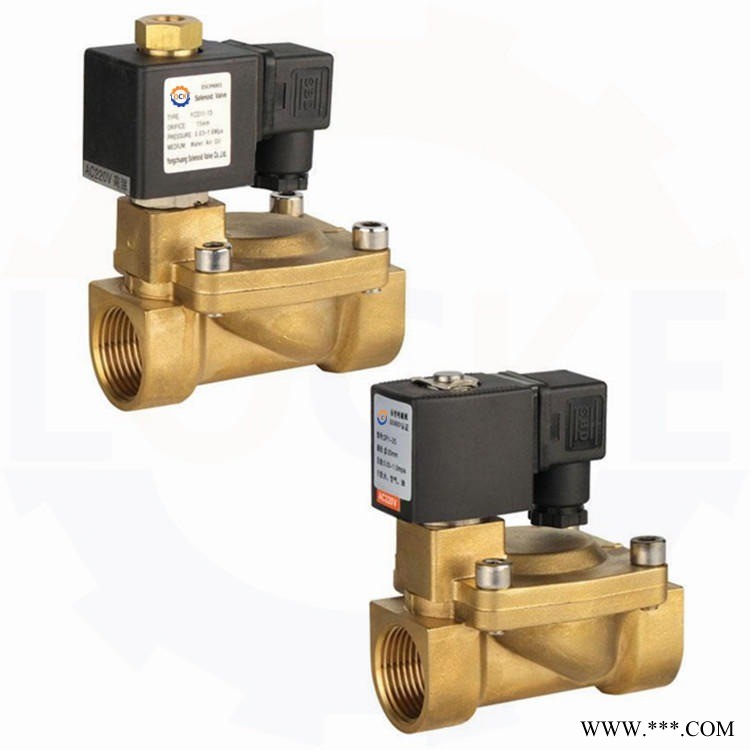

一、进口黄铜电磁阀产品概述：
德国《LOCKE》洛克--进口黄铜电磁阀是工业过程自动化控制系统用的执行器，它在接受电控信号后能自动开启或关闭阀门，实现对管道中流体介质的通断或流量调节控制，从而对系统中的温度、流量、压力等参数进行自动调节或远程控制。适用于空气、水、油等介质，进行液位、浓度、流量、计量或排放循环等自动控制的二位式通断切换。电磁直动式开阀结构，零压差开阀。膜片式密封，动作灵敏，开闭可靠。
1、 Introduction of imported brass solenoid valve products:
Locke imported brass solenoid valve is an actuator used in industrial process automation control system. It can automatically open or close the valve after receiving the electric control signal, so as to realize the on-off or flow regulation control of the fluid medium in the pipeline, so as to automatically adjust or remotely control the temperature, flow, pressure and other parameters in the system. Suitable for air, water, oil and other media, liquid level, concentration, flow, metering or discharge cycle automatic control of two position on-off switching. Electromagnetic direct acting valve opening structure, zero pressure difference valve opening. Diaphragm seal, sensitive action, reliable opening and closing.
二、进口黄铜电磁阀技术参数：
公称通径：DN6～DN50
介质温度：-5~180℃
动作方式：直动式，分步直动式
工作压力：常闭式：0~10 kgf/cm2;
控制方式：常闭、常开、自保持
阀体材质：黄铜（锻造）
膜片式密封，膜片材质：丁腈橡胶（NBR）
线圈保护等级： 铁壳线圈IP54
适用介质：液体、水、热水、气、油、瓦斯等
2、 Technical parameters of imported brass solenoid valve:
Nominal diameter: dn6 ～ DN50
Medium temperature: - 5 ~ 180 ℃
Action mode: direct acting, step-by-step direct acting
Working pressure: normally closed: 0 ~ 10 kgf / cm2;
Control mode: normally closed, normally open, self holding
Body material: brass (forged)
Diaphragm seal, diaphragm material: NBR
Coil protection grade: iron clad coil IP54
三、进口黄铜电磁阀性能特点：
1、采用平板式膜片结构启闭可靠，并增强了该产品的使用寿命。
2、选用塑封线圈可提高该产品在众多环境下的安全使用。
3、采用直动式膜片结构无压力启动，扩充了其使用领域。
3、 Performance characteristics of imported brass solenoid valve:
1. The flat diaphragm structure is adopted for reliable opening and closing, and the service life of the product is enhanced.
2. The use of plastic coil can improve the safety of the product in many environments.
3. The direct acting diaphragm structure is adopted to start without pressure, which expands its application field.
