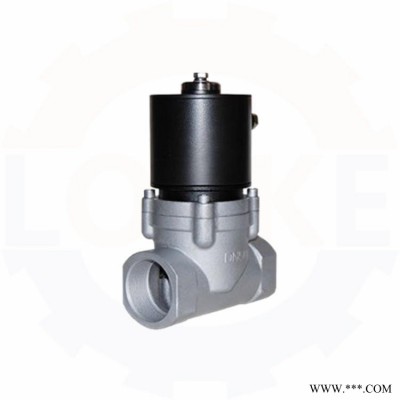

进口空气电磁阀 德国洛克空气电磁阀

一、进口空气电磁阀产品概述：

德国《LOCKE》洛克--进口真空电磁阀是安装在机械式真空泵上的专用阀门。阀门与泵接在同一电源上，泵的开启与停止直接控制了阀的开启与关闭。当泵停止工作或电源突然中断时，阀能自动将真空系统封闭，并将大气通过泵的进气口充入泵腔，避免泵油返流污染真空系统。真空电磁阀适用的工作介质为空气及非腐蚀性气体。

1、 Introduction of imported air solenoid valve products:

German "Locke" - imported vacuum solenoid valve is a special valve installed on mechanical vacuum pump. The valve and the pump are connected to the same power supply, and the opening and stopping of the pump directly controls the opening and closing of the valve. When the pump stops working or the power supply is suddenly interrupted, the valve can automatically close the vacuum system, and fill the air into the pump cavity through the air inlet of the pump, so as to avoid the pump oil backflow polluting the vacuum system. The working medium of vacuum solenoid valve is air and non corrosive gas.

二、进口空气电磁阀技术参数：

公称通径：DN10～200mm

环境温度：-10～+50℃ -40～+80℃

线圈温度：<+50℃、<+85℃

控制方式：常闭、常开、自保持

公称压力：-0.1bar，真空

阀体材质：不锈钢304、316

适用介质：水、气、油 等

介质温度：+60℃～+200℃

介质粘度：小于50CSt （大于50时需定制）

防护性能：防水、防尘、防爆（Exd IICT5）、防腐

阀芯材质：均为不锈钢

接线方式：接线座式、引线式、插头式

电源电压：DC12、DC24V、DC36V、DC110V、DC127V、DC220V、DC380V；

                AC24V、AC36、AC110V、AC127V、AC220V、AC380V

连接方式：法兰、内螺纹、外螺纹、卡套、焊接

泄 漏  量：零泄漏

备      注：特殊型可定制

2、 Technical parameters of inlet air solenoid valve:

Nominal diameter: DN 10 ～ 200 mm

Ambient temperature: - 10 ～ + 50 ℃ - 40 ～ + 80 ℃

Coil temperature: < + 50 ℃ and < + 85 ℃

Control mode: normally closed, normally open, self holding

Nominal pressure: - 0.1bar, vacuum

Valve body material: stainless steel 304, 316

Applicable media: water, gas, oil, etc

Medium temperature: 60 ℃～ + 200 ℃

Medium viscosity: less than 50cst (customized when more than 50)

Protection performance: waterproof, dustproof, explosion-proof (Exd iict5), anti-corrosion

Valve core material: stainless steel

Wiring mode: wiring base type, lead type, plug type

Power supply voltage: DC12, DC24 V, dc36 V, dc110 V, dc127 V, DC220 V, dc380 V;

AC24V、AC36、AC110V、AC127V、AC220V、AC380V

Connection mode: flange, internal thread, external thread, ferrule, welding

Leakage: zero leakage

Note: special type can be customized

三、进口空气电磁阀工作原理：

常闭：当线圈通电时，电磁铁芯吸合，卸压孔打开，主活塞由介质压力推动，打开主阀口，介质流通。

当线圈断电时，主阀口关闭，介质截止。

常开：当线圈通电时，电磁铁芯吸合，卸压孔关闭，主活塞由介质压力推动，关闭主阀口，介质截止。

当线圈断电时，主阀口打开，介质流通。

3、 Working principle of inlet air solenoid valve:

Normally closed: when the coil is energized, the electromagnet core is closed, the pressure relief hole is opened, the main piston is pushed by the medium pressure, the main valve port is opened, and the medium flows.

When the coil is powered off, the main valve port is closed and the medium is cut off.

Normally open: when the coil is energized, the electromagnet core is closed, the pressure relief hole is closed, the main piston is pushed by the medium pressure, the main valve port is closed, and the medium is cut off.

When the coil is powered off, the main valve port opens and the medium flows.

四、进口空气电磁阀性能特点：

1、体积小，外形精美，抗动作疲劳性强，专制线圈，不易烧毁。

2、活塞环设计结构更有科学性，采用特殊材料制造，不会被介质卡死。

3、金属活塞与金属阀腔不产生直接摩擦，阀体安装方向无限制。

4、合理的密封材料和结构，密封性能更好，寿命长。

5、长期停止动作后重新启动，动作同样灵敏。

6、适用于小口径，低压力的管道系统中。

7、零压启动、开关迅速。

4、 Performance characteristics of imported air solenoid valve:

1. Small size, beautiful appearance, strong anti action fatigue, autocratic coil, not easy to burn.

2. The piston ring design structure is more scientific, using special materials, will not be stuck by the medium.

3. There is no direct friction between the metal piston and the metal valve chamber, and the installation direction of the valve body is unlimited.

4. Reasonable sealing material and structure, better sealing performance and long service life.

5. After long-term stop action, restart, action is also sensitive.

6. It is suitable for small diameter and low pressure pipeline system.

7. Zero voltage start, switch quickly.
