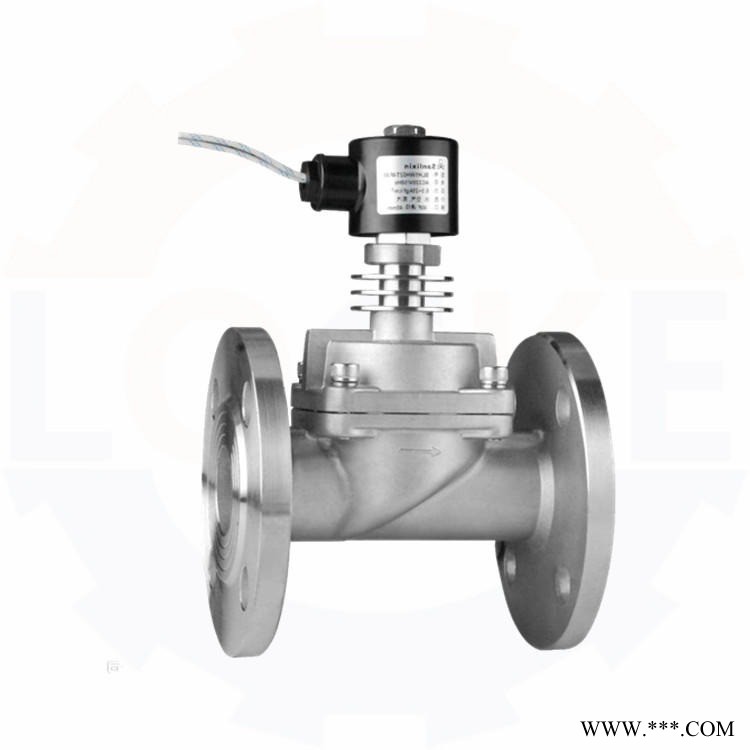

进口导热油电磁阀 德国洛克导热油电磁阀

一、进口导热油电磁阀产品概述：

德国《LOCKE》洛克--进口高温导热油电磁阀应用于各种中温场合、高温场合，如：高温蒸汽系统、过热蒸汽控制、 导热油控制、干燥设备、供热系统、工业石油供用系统、石化设备、过滤设备系统等，超高温电磁阀适用于中高温热水、导热油、硅油、高温蒸汽、饱和蒸汽及过热蒸汽等管路的自动控制，使用介质温度可达550℃。

1、 Introduction of imported heat transfer oil solenoid valve products:

Locke imported high temperature heat transfer oil solenoid valve is used in various medium and high temperature occasions, such as high temperature steam system, superheated steam control, heat transfer oil control, drying equipment, heat supply system, industrial oil supply system, petrochemical equipment, filtration equipment system, etc. ultra high temperature solenoid valve is suitable for medium and high temperature hot water, heat transfer oil, silicone oil, high temperature steam, high temperature oil, high temperature oil, high temperature oil, high temperature oil, high temperature oil, high temperature oil, high temperature oil, high temperature oil, high temperature oil, high temperature oil, high temperature oil, high Saturated steam and superheated steam pipeline automatic control, the use of medium temperature up to 550 ℃.

二、进口导热油电磁阀技术参数：

产品规格：DN15~DN300

阀体材质：铸铁、不锈钢 (铸铁不能用在腐蚀流体上)

适用介质：导热油、石油、燃气、油、重油、等腐蚀流体等

介质温度：-20~+550℃

介质粘度：小于50CSt (大于50时需定制)

适用压力：0.1～6.4Mpa

防护性能：防水、防爆(Exd IICT5)

阀芯材质：均为不锈钢

接线方式：接线座式、引线式、插头式

控制方式：常开、常闭

电源电压：D12~127V;AC36~380V

连接方式：内螺纹、法兰、(外螺纹和特殊接口可定做或加转接头)

泄 漏 量：零

备注：特殊型可定制

2、 Technical parameters of imported heat transfer oil solenoid valve:

Product specification: DN 15 ~ DN 300

Valve body material: cast iron, stainless steel (cast iron cannot be used in corrosive fluid)

Applicable media: heat transfer oil, oil, gas, oil, heavy oil, corrosive fluid, etc

Medium temperature: - 20 ~ + 550 ℃

Medium viscosity: less than 50cst (customized when more than 50)

Applicable pressure: 0.1 ～ 6.4Mpa

Protection performance: waterproof and explosion proof (Exd iict5)

Valve core material: stainless steel

Wiring mode: wiring base type, lead type, plug type

Control mode: normally open and normally closed

Power supply voltage: D12 ~ 127V; AC36~380V

Connection mode: internal thread, flange, (external thread and special interface can be customized or add adapter)

Leakage: Zero

Note: special type can be customized

三、进口导热油电磁阀工作原理：

常闭：当线圈通电时，电磁铁芯吸合，卸压孔打开，主活塞由介质压力推动，打开主阀口，介质流通。

          当线圈断电时，主阀口关闭，介质截止。

常开：当线圈通电时，电磁铁芯吸合，卸压孔关闭，主活塞由介质压力推动，关闭主阀口，介质截止。

          当线圈断电时，主阀口打开，介质流通。

3、 Working principle of imported heat transfer oil solenoid valve:

Normally closed: when the coil is energized, the electromagnet core is closed, the pressure relief hole is opened, the main piston is pushed by the medium pressure, the main valve port is opened, and the medium flows.

When the coil is powered off, the main valve port is closed and the medium is cut off.

Normally open: when the coil is energized, the electromagnet core is closed, the pressure relief hole is closed, the main piston is pushed by the medium pressure, the main valve port is closed, and the medium is cut off.

When the coil is powered off, the main valve port opens and the medium flows.

四、进口导热油电磁阀性能特点：

耐高温电磁阀阀芯均为不锈活塞式，活塞环用特殊耐温、耐磨材料制作；活塞与金属阀腔不产生直接摩擦，阀体安装方向无限制；精制线圈，并采用散热的结构方式，因此不易烧毁；大大增加使用寿命、长时间停止动作重新启动，动作同样灵敏。

4、 Performance characteristics of imported heat transfer oil solenoid valve:

The valve cores of high temperature resistant solenoid valves are stainless piston type, and the piston rings are made of special temperature resistant and wear-resistant materials; There is no direct friction between piston and metal valve chamber, and the installation direction of valve body is unlimited; The coil is refined and heat dissipation structure is adopted, so it is not easy to burn; Greatly increase the service life, long time stop action restart, action is also sensitive.

INTRODUCTION OF importED HEAT-ConDUCTING OIL SOLENOID VALVE: Roch, Germany -- imported heat-conducting oil solenoid valve is used in all kinds of medium and high temperature occasions, such as: High temperature steam system, superheated steam control, heat transfer oil control, drying equipment, heating system, industrial petroleum supply system, petrochemical equipment, filtration equipment system, etc. , ultra-high temperature solenoid valve is suitable for high-temperature hot water, heat-conducting oil, silicone oil, high-temperature steam, saturated steam and superheated steam pipeline automatic control, the use of medium temperature can reach 550 °C. Sentence is too long, please supply a shorter sentence AC36 ~ 380V connection: internal thread, flange, (external thread and special interface can be customized or add adapter) leakage: zero remarks: Special type can be customized 3, imported heat conducting oil solenoid valve working principle: normally closed: when the coil is energized, the electromagnetic core is absorbed and closed, pressure relief hole open, the main piston pressure driven by the medium, open the main valve port, medium flow. When the coil power off, the main valve port closed, the media cut-off. Normally Open: When the coil is energized, the electromagnetic core is absorbed, the pressure relief hole is closed, the main piston is driven by the medium pressure, the main valve port is closed, the medium is cut off. When the coil power off, the main valve opening, medium flow. Four, importED HEAT-ConDUCTING OIL SOLENOID valve features: High temperature resistant solenoid valve spool are stainless piston, piston ring with special heat-resistant, wear-resistant material production; Refined Coil, and use the structure of heat dissipation, so not easy to burn, greatly increasing the service life, long time stop action restart, action is equally sensitive.
