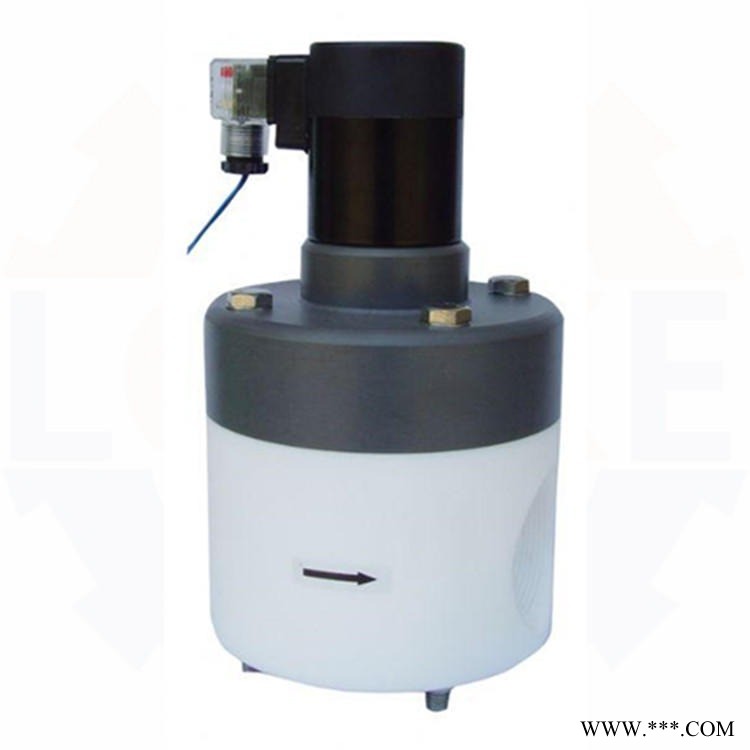

进口四氟电磁阀 德国洛克四氟电磁阀

一、进口四氟电磁阀产品概述：

德国《LOCKE》洛克--进口四氟电磁阀应用于强酸、强碱、强氧化剂及等强腐蚀性流体介质以及超纯流体。例如各种电镀液、芳香族溶剂、脂脂族溶剂、高洁净流体等管路的自动控制。广泛应用于各种腐蚀性介质自动化流体控制的较佳配套产品。

1、 Introduction of imported Teflon solenoid valve products:

Locke imported Teflon solenoid valve is used in strong acid, strong alkali, strong oxidant, strong corrosive fluid medium and ultra pure fluid. Such as hydrochloric acid, concentrated sulfuric acid, all kinds of electroplating solution, aromatic solvent, aliphatic solvent, high clean fluid pipeline automatic control. Widely used in a variety of corrosive media automatic fluid control of the better matching products.

二、进口四氟电磁阀技术参数：

阀体材质：PTFE(聚四氟乙烯，俗称塑料王)

阀芯材质：PTFE(聚四氟乙烯，俗称塑料王)

原理结构：直动式四氟活塞型、先导四氟活塞型

流体范围：氢氟酸、溶剂、化学试剂等酸、碱性液体和气体。

工作压力：-0.1～0Mpa,0-0.6Mpa,0.01-1.0Mpa

流体温度： -50℃--180℃

公称通径：DN1-DN80

连接方式：内螺纹，法兰，承插

控制方式：常闭式、常开式

标准电压：AC220V、DC24V (其它定制)

电气连接：接线盒(2个不分正负极电源端子、1个接地端子)

安装方式：水平、垂直

特殊功能：开关信号反馈、防爆(dIICT5)(定货时说明)

2、 Technical parameters of imported Teflon solenoid valve:

Body material: PTFE (polytetrafluoroethylene, commonly known as plastic king)

Valve core material: PTFE (polytetrafluoroethylene, commonly known as plastic king)

Principle and structure: direct acting PTFE piston type, pilot PTFE piston type

Fluid range: hydrochloric acid, sulfuric acid, nitric acid, hydrofluoric acid, solvent, chemical reagent and other acid, alkaline liquid and gas.

Working pressure: - 0.1 ～ 0mpa, 0-0.6mpa, 0.01-1.0mpa

Fluid temperature: - 50 ℃ -- 180 ℃

Nominal diameter: DN 1-dn 80

Connection mode: internal thread, flange, socket

Control mode: normally closed and normally open

Standard voltage: AC220 V, DC24 V (other customized)

Electrical connection: junction box (2 power terminals regardless of positive and negative poles, 1 grounding terminal)

Installation mode: horizontal and vertical

Special functions: switch signal feedback, explosion proof (diict5) (instructions when ordering)

三、进口四氟电磁阀工作原理：

由于启闭原理的独特性和结构设计的科学性，产品的所有部件均可根据不同的化学介质选用不同的高分子材料制造，同时由于它的先导孔和卸压孔是传统阀的几十倍大，复位弹簧设置在介质外，因此它具有不易堵塞、耐酸碱、抗腐蚀和使用寿命长等优点，可适应于各种化学流体介质，是化工流体自动化生产设备配套产品；

具有优异的耐腐蚀性能，对所有的常用化学品都呈惰性。几乎可以抵抗所有化学介质(包括王水)。具有优异的耐热性能，应用温度为-100～180℃，材料可长期在230～260℃下工作。特别适合腐蚀严重、温度高且化学品不允许与润滑剂接触的环境。

3、 Working principle of imported Teflon solenoid valve:

Due to the unique opening and closing principle and scientific structural design, all parts of the product can be made of different polymer materials according to different chemical media. At the same time, because its pilot hole and pressure relief hole are dozens of times larger than traditional valves, and the return spring is set outside the media, it has the advantages of not easy to block, acid and alkali resistance, corrosion resistance and long service life, It is suitable for all kinds of chemical fluid medium, and is the best matching product of chemical fluid automatic production equipment;

It has excellent corrosion resistance and is inert to all commonly used chemicals. It can resist almost all chemical media (including concentrated sulfuric acid and aqua regia). It has excellent heat resistance. The application temperature is - 100 ~ 180 ℃. The material can work at 230 ~ 260 ℃ for a long time. It is especially suitable for the environment with serious corrosion, high temperature and chemicals not allowed to contact with lubricants.

四、进口四氟电磁阀性能特点：

1、聚四氟电磁阀具有不易堵塞、耐酸碱和使用寿命长；

2、具有优异的耐腐蚀性能，对所有的常用化学品都呈惰性；

3、聚四氟电磁阀具有优异的耐热性能，很适合腐蚀严重、温度高且化学品；

4、不允许与润滑剂接触的环境。

4、 Performance characteristics of imported Teflon solenoid valve:

1. PTFE solenoid valve is not easy to block, acid and alkali resistance and long service life;

2. It has excellent corrosion resistance and is inert to all common chemicals;

3. Polytetrafluoroethylene solenoid valve has excellent heat resistance, which is very suitable for serious corrosion, high temperature and chemical industry;

4. Do not allow contact with lubricants.
