进口防腐电磁阀 德国洛克防腐电磁阀

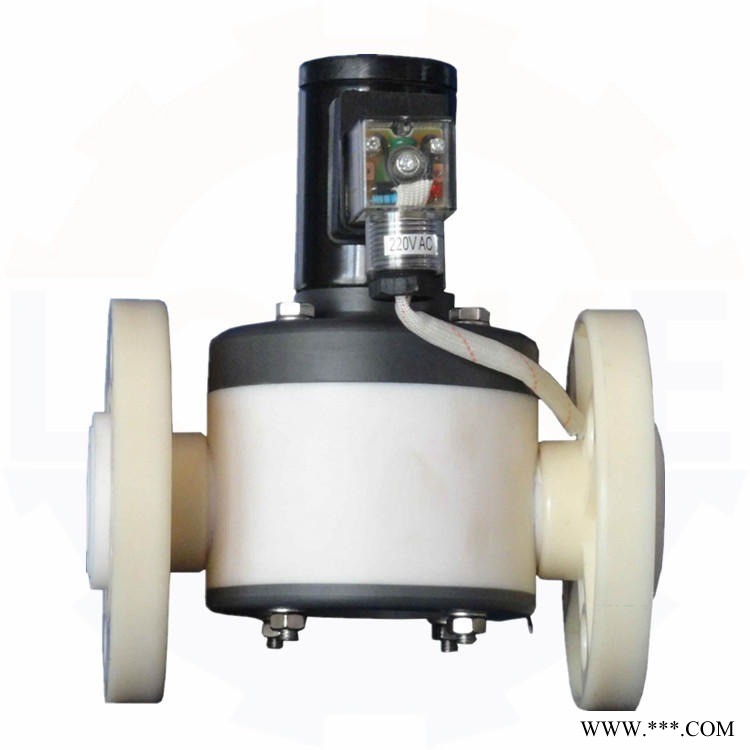

一、进口防腐电磁阀产品概述：

德国《LOCKE》洛克--进口防腐电磁阀适用于各种强酸强碱类气液体为工作介质，并广泛应用于医疗制药、化工化学、环保或清洗设备等自动化控制系统作介质管路的通断。电磁阀具有优异的耐热性能，特别适合腐蚀严重、温度高且化学品不允许与润滑剂接触的环境。

1、 Overview of imported anti-corrosion solenoid valve products:

Locke imported anti-corrosion solenoid valve is suitable for all kinds of strong acid and alkali gas and liquid as working medium, and is widely used in automatic control system of Medical Pharmacy, chemical industry, environmental protection or cleaning equipment for medium pipeline on-off. Solenoid valve has excellent heat resistance, especially suitable for severe corrosion, high temperature and chemicals are not allowed to contact with lubricants.

二、进口防腐电磁阀技术参数：

通径范围：DN1-100mm

工作环境温度：-30—+80℃;-50—+100℃

线圈工作温度：<+50℃、<+85℃

连接方式：螺纹、法兰

控制方式：常开式、常闭式

阀体材质：聚四氟乙烯、ABS

流通流体压力：-1bar、6bar、10bar

流通流体温度：<-40℃、<+60℃、<+120℃

国际标准电压：AC(380、220、110、24)V、DC(220、110、24、12)V

流通流体介质：腐蚀性流体(酸、碱、盐、甲醛、化学流体等)

2、 Technical parameters of imported anti-corrosion solenoid valve:

Diameter range: DN 1-100 mm

Working environment temperature: - 30 - + 80 ℃- 50—+100℃

Coil working temperature: < + 50 ℃ and < + 85 ℃

Connection mode: thread, flange

Control mode: normally open and normally closed

Valve body material: PTFE, ABS

Circulating fluid pressure: - 1bar, 6bar, 10bar

Circulating fluid temperature: < - 40 ℃, < + 60 ℃, < + 120 ℃

International standard voltage: AC (380, 220, 110, 24) V, DC (220, 110, 24, 12) V

Circulating fluid medium: corrosive fluid (acid, alkali, salt, phenol, formaldehyde, butane, chemical fluid, etc.)

三、进口防腐电磁阀工作原理：

常闭：当线圈通电时，电磁铁芯吸合，卸压孔打开，主活塞由介质压力推动，打开主阀口，介质流通。

　　   当线圈断电时，主阀口关闭，介质截止。

常开：当线圈通电时，电磁铁芯吸合，卸压孔关闭，主活塞由介质压力推动，关闭主阀口，介质截止。

　　   当线圈断电时，主阀口打开，介质流通。

3、 Working principle of imported anti-corrosion solenoid valve:

Normally closed: when the coil is energized, the electromagnet core is closed, the pressure relief hole is opened, the main piston is pushed by the medium pressure, the main valve port is opened, and the medium flows.

When the coil is powered off, the main valve port is closed and the medium is cut off.

Normally open: when the coil is energized, the electromagnet core is closed, the pressure relief hole is closed, the main piston is pushed by the medium pressure, the main valve port is closed, and the medium is cut off.

When the coil is powered off, the main valve port opens and the medium flows.

四、进口防腐电磁阀性能特点：

1、聚四氟电磁阀具有不易堵塞、耐酸碱和使用寿命长；

2、具有优异的耐腐蚀性能，对所有的常用化学品都呈惰性；

3、聚四氟电磁阀具有优异的耐热性能，很适合腐蚀严重、温度高且化学品；

4、不允许与润滑剂接触的环境。

4、 Performance characteristics of imported anti-corrosion solenoid valve:

1. PTFE solenoid valve is not easy to block, acid and alkali resistance and long service life;

2. It has excellent corrosion resistance and is inert to all common chemicals;

3. Polytetrafluoroethylene solenoid valve has excellent heat resistance, which is very suitable for serious corrosion, high temperature and chemical industry;

4. Do not allow contact with lubricants.
