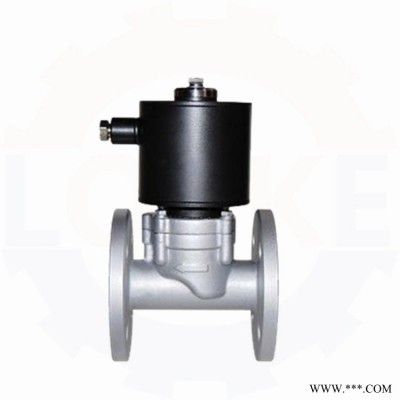

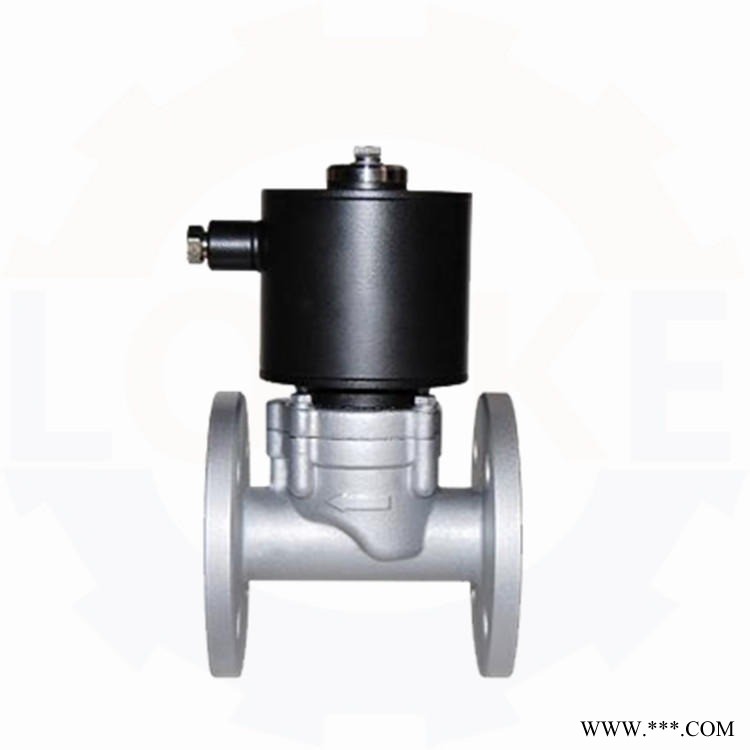

进口先导式电磁阀 德国洛克先导式电磁阀

一、进口先导式电磁阀产品概述：

德国《LOCKE》洛克--进口先导式电磁阀(Pilot type electromagnetic valve )适用范围于以蒸汽为加热介质，进行温度自动控制的执行机构。可对蒸汽加热器、散热器、干燥器等蒸汽设备及各类温度自控仪、蒸汽定型机、蒸染机、蒸汽回潮机等成套设备的锅炉蒸汽管道进行二位式自动控制和远程控制区。广泛应用于染化、纺织、印染、食品、医药、卷烟、水泥制品、石油化工、冶金等部门的自控系统。

1、 Introduction of imported pilot solenoid valve products:

German "Locke" Locke - imported pilot type electromagnetic valve is applicable to the actuator with steam as heating medium and automatic temperature control. It can be used for two position automatic control and remote control of steam pipes of steam equipment such as steam heater, radiator, dryer and complete sets of equipment such as various temperature automatic control instruments, steam setting machine, steam dyeing machine and steam moisture regain machine. It is widely used in automatic control system of dyeing, textile, printing and dyeing, food, medicine, cigarette, cement products, petrochemical, metallurgy and other departments.

二、进口先导式电磁阀技术参数：

动作方式：直动式、先导式

控制方式：常闭型、常开型

阀体材质：304不锈钢、316不锈钢、316L不锈钢、PVC、PP、UPVC、CPVC、PTFE

电源电压：DC12V、DC24V、DC36V、DC72V、DC110V、AC110V、AC220V、AC380V

压力范围：0-0.1MPa、0.6MPa、1.6MPa、2.5MPa、4.0MPa、6.3MPa、10MPa~300MPa

介质温度：-196℃、-100℃、-40℃、0-80℃、0-150℃、+200℃、+300℃

防护型式：普通型、防尘型、防水型、防爆型

防爆等级：ExmbIICT4、ExdIIBT4、ExdIICT5、ExdIICT6

连方式：内螺纹、外螺纹、法兰、卡套、焊接、活接

2、 Technical parameters of imported pilot solenoid valve:

Action mode: direct action type, pilot type

Control mode: normally closed and normally open

Valve body material: 304 stainless steel, 316 stainless steel, 316L stainless steel, PVC, PP, UPVC, CPVC, PTFE

Power supply voltage: DC12V, DC24V, DC36V, dc72v, dc110v, AC110V, AC220V, AC380V

Pressure range: 0-0.1mpa, 0.6MPa, 1.6Mpa, 2.5MPa, 4.0Mpa, 6.3MPa, 10MPa ~ 300mpa

Medium temperature: - 196 ℃, - 100 ℃, - 40 ℃, 0-80 ℃, 0-150 ℃, + 200 ℃, + 300 ℃

Protection type: common type, dust-proof type, waterproof type and explosion-proof type

Explosion proof grade: exmbiict4, ExdIIBT4, exdiict5, exdiict6

Connection mode: internal thread, external thread, flange, ferrule, welding, union

三、进口先导式电磁阀工作原理：

线圈通电之后，先导孔因为电磁力而打开，这时候上腔压力快速下降，在阀芯的周围就形成了压差，且下面的压力更大。流体的压力推动着电磁阀的关闭件向上移动，此时阀门就可以打开。

当电磁阀断电之后，弹簧的恢复力把先导孔关闭，入口的压力通过旁通孔形成上面的压力较高，而流体的压力推动着电磁阀关闭件向下移动，电磁阀关闭。

3、 Working principle of imported pilot solenoid valve:

After the coil is electrified, the pilot hole is opened because of the electromagnetic force. At this time, the pressure in the upper chamber drops rapidly, forming a pressure difference around the valve core, and the lower pressure is greater. The pressure of the fluid pushes the closing part of the solenoid valve upward, and the valve can be opened at this time.

When the solenoid valve is powered off, the spring's restoring force closes the pilot hole, the inlet pressure is formed through the bypass hole, and the upper pressure is higher, while the fluid pressure pushes the solenoid valve closing part downward, and the solenoid valve is closed.

四、进口先导式电磁阀性能特点：

1、先导式的好处是电磁头小，功耗小，节省能源，更重要的是发热小，线圈不易烧毁，可以长时间通电，这一点尤其被人重视。

2、先导式电磁阀和直通式电磁阀相比，虽然复杂，但是可以比前者实现更高更精确的控制效果，能够控制阀口的开关速度，对于降低液压冲击有很好的效果，具体看实现形式。对于精度要求不高的应用场合，可以用直通式电磁阀。

4、 Performance characteristics of imported pilot solenoid valve:

1. The advantages of pilot type are small electromagnetic head, low power consumption, energy saving, more importantly, small heating, coil is not easy to burn, and can be electrified for a long time.

2. Compared with the straight through solenoid valve, the pilot solenoid valve is more complex, but it can achieve higher and more accurate control effect than the former. It can control the opening and closing speed of the valve port, and has a good effect on reducing the hydraulic impact. See the implementation form for details. For applications with low accuracy requirements, straight through solenoid valve can be used.
