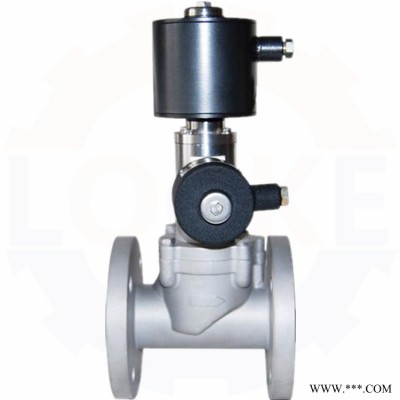

进口自保式电磁阀 德国洛克自保式电磁阀

一、进口自保式电磁阀产品概述：

德国《LOCKE》洛克--进口自保式电磁阀采用具有机械式自锁记忆功能的双先导结构的自保持式。当部件线圈通电，电磁阀打开，然后断电，此时电磁阀为常通状态，当部件线圈通电，电磁阀关闭，然后断电，此时电磁阀为常闭状态。若线圈同时通电，此时电磁阀为常通状态，线圈也不会因此烧坏。

1、 Overview of imported self-protection solenoid valve products:

German "Locke" Locke imported self-protection solenoid valve adopts self-protection type with double pilot structure with mechanical self-locking memory function. When the component coil is energized, the solenoid valve is opened and then de energized. At this time, the solenoid valve is normally closed. When the component coil is energized, the solenoid valve is closed and then de energized. At this time, the solenoid valve is normally closed. If the coil is energized at the same time, the solenoid valve is in the normal state, and the coil will not burn out.

二、进口自保式电磁阀技术参数：

控制方式：自保持

通径范围：DN10-300mm

工作环境温度：-30—+80℃;-50—+100℃

线圈工作温度：<+50℃、<+85℃

流通流体压力：-1-64bar

流通流体介质：水、气、油、易燃易爆、腐蚀性流体等

国际标准电压：AC(380、220、110、24)V、DC(220、110、24、12)V

流通流体温度：<-100℃、<-40℃、<+60℃、<+120℃、<+200℃、<+350℃

阀体材质：不锈钢(304、316、316L)、铸钢

连接方式：螺纹(内螺纹，外螺纹)法兰、焊接、卡箍、活接

泄漏量：零泄漏

2、 Technical parameters of imported self-protection solenoid valve:

Control mode: self holding

Diameter range: DN 10-300 mm

Working environment temperature: - 30 - + 80 ℃- 50—+100℃

Coil working temperature: < + 50 ℃ and < + 85 ℃

Flow fluid pressure: - 1-64bar

Circulating fluid medium: water, gas, oil, flammable and explosive, corrosive fluid, etc

International standard voltage: AC (380, 220, 110, 24) V, DC (220, 110, 24, 12) V

Circulating fluid temperature: < - 100 ℃, < - 40 ℃, < + 60 ℃, < + 120 ℃, < + 200 ℃, < + 350 ℃

Valve body material: stainless steel (304, 316, 316L), cast steel

Connection mode: threaded (internal thread, external thread) flange, welding, clamp, union

Leakage: zero leakage

三、进口自保式电磁阀性能特点：

1、节能、省电、线圈不发热,同时具有常开、常闭功能，双稳态脉冲，适用范围广；

2、技术：国际先进技术和制造工艺，具备鲜明的技术品质和造型风格；

3、结构独特：太空设计灵感、飞碟式活塞、轻巧灵活，流量大，寿命长；

4、密封性好：锥形阀座，自补偿磨损，独有的三维密封结构，灵活选配不同密封材料；

5、导向功能：阀内导向装置，使活塞的运动永不偏离中心，从而避免了活塞卡死;

6、避免渗磁：动磁芯材料成份采用本公司独特配方，不会因渗磁而导致误动作；

7、工艺先进：电磁阀行业采用腊模精密浇铸工艺厂家，阀体内外光洁、美观。

3、 Performance characteristics of imported self-protection solenoid valve:

1. Energy saving, power saving, coil does not heat, at the same time with normally open, normally closed function, bistable pulse, wide range of application;

2. Leading technology: international advanced technology and manufacturing process, with distinct technical quality and modeling style;

3. Unique structure: space design inspiration, flying saucer piston, light and flexible, large flow, long life;

4. Good sealing performance: conical seat, self compensating wear, unique three-dimensional sealing structure, flexible selection of different sealing materials;

5. Guiding function: the universal guiding device in the valve can make the movement of the piston never deviate from the center, so as to avoid the piston sticking;

6. Avoid magnetic penetration: the material composition of moving magnetic core adopts the unique formula of our company, which will not cause misoperation due to magnetic penetration;

7. Advanced technology: solenoid valve industry only uses wax mold precision casting process manufacturers, valve body inside and outside clean, beautiful.

四、进口自保式电磁阀工作原理：

现有的电磁阀是由壳体、放置在壳体内的骨架及线圈、装在骨架内的活塞套管及内部装有复位弹簧、下端有顶杆的活塞组成。实际连接时，电磁阀引线通过控制开关接电源，活塞套管通过法兰与管路主控制阀相连。当电磁阀得电时，处于开启状态;反之，则处于关闭状态。由于在实际控制中，大部分时间都要接通主管路，因此，电磁阀相应也要在接电状态下工作。这样，就使得电磁阀耗电大，特别是大型电磁阀，耗电非常大，使得生产运行成本增大。

4、 Working principle of imported self-protection solenoid valve:

The existing solenoid valve is composed of a shell, a framework and a coil placed in the shell, a piston sleeve installed in the framework and a piston with a return spring inside and a top rod at the lower end. In actual connection, the lead wire of the solenoid valve is connected to the power supply through the control switch, and the piston sleeve is connected to the main control valve of the pipeline through the flange. When the solenoid valve is powered on, it is in the open state; On the contrary, it is closed. In the actual control, the main pipe is connected most of the time, so the solenoid valve should also work in the power on state. In this way, the power consumption of solenoid valve is large, especially for large solenoid valve, which increases the production and operation cost.
