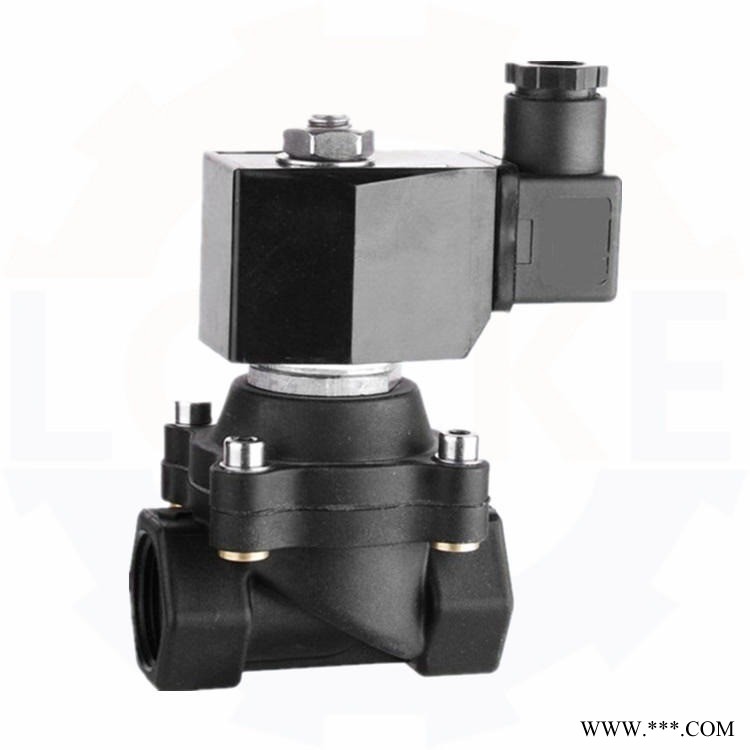

进口PVC塑料电磁阀 德国洛克PVC塑料电磁阀

一、进口PVC塑料电磁阀产品概述：

德国《LOCKE》洛克--进口PVC塑料电磁阀由于启闭原理的独特性和结构设计的科学性，产品的所有部件均可根据不同的化学介质选用不同的高分子材料制造，同时由于它的先导孔和卸压孔是传统阀的几十倍大，复位弹簧设置在介质外，因此它具有不易堵塞、耐酸碱、抗腐蚀和使用寿命长等优点，可适应于各种化学流体介质。

1、 Introduction of imported PVC plastic solenoid valve products:

Due to the unique opening and closing principle and scientific structure design, all parts of the product can be made of different polymer materials according to different chemical media. At the same time, because its pilot hole and pressure relief hole are dozens of times larger than the traditional valve, and the return spring is set outside the medium, it is not easy to block, acid and alkali resistant, easy to operate, easy to operate and easy to operate With the advantages of corrosion resistance and long service life, it can be used in various chemical fluid media.

二、进口PVC塑料电磁阀技术参数：

阀体材质：PVC聚氯乙烯

工作压力：0.01~1.0Mpa

阀体通径：DN2~DN80mm

控制方式：常开、常闭、换向（三通）

连接方式：内螺纹、法兰、粘接、活接

电源电压：DC24V、AC220V标配，其他电压可订制

功能选配：带信号反馈、防爆（防爆等级Exmb/IIT4、ExdIICT5）

2、 Technical parameters of imported PVC plastic solenoid valve:

Valve body material: PVC

Working pressure: 0.01 ~ 1.0MPa

Valve diameter: DN2 ~ dn80mm

Control mode: normally open, normally closed, reversing (TEE)

Connection mode: internal thread, flange, bonding, union

Power supply voltage: DC24 V, AC220 V standard, other voltages can be customized

Function selection: with signal feedback, explosion proof (explosion proof grade exmb / iit4, exdiict5)

三、进口PVC塑料电磁阀工作原理：

通过控制阀体的移动来开启或关闭不同的排油孔，而进油孔是常开的，液压油就会进入不同的排油管，

电磁阀里有密闭的腔，在不同位置开有通孔，每个孔连接不同的油管，腔中间是活塞，两面是两块电磁铁，哪面的磁铁线圈通电阀体就会被吸引到哪边，

然后通过油的压力来推动油缸的活塞，活塞又带动活塞杆，活塞杆带动机械装置。这样通过控制电磁铁的电流通断就控制了机械运动。

3、 Working principle of imported PVC plastic solenoid valve:

By controlling the movement of the valve body to open or close different oil drain holes, and the oil inlet hole is normally open, the hydraulic oil will enter different oil drain pipes,

There is a closed cavity in the solenoid valve. There are through holes in different positions. Each hole is connected with a different oil pipe. There is a piston in the middle of the cavity and two electromagnets on both sides. The valve body will be attracted to which side when the magnet coil is electrified,

Then through the oil pressure to push the piston of the cylinder, the piston drives the piston rod, and the piston rod drives the mechanism. In this way, the mechanical movement is controlled by controlling the current on and off of the electromagnet.

四、进口PVC塑料电磁阀性能特点：

1、主体材质为符合饮用水标准的塑料成型，卫生安全。

2、电磁阀除了可以与塑料管道兼容配套安装之外，还可以与各种金属管道对接。

3、螺纹、法兰及快接形式（带活接）安装方便。

4、线圈为水阀常用标准件及防水型。

4、 Performance characteristics of imported PVC plastic solenoid valve:

1. The main body is made of plastic that meets the drinking water standard, which is hygienic and safe.

2. In addition to being compatible with plastic pipes, solenoid valves can also be connected with various metal pipes.

3. Thread, flange and quick connection (with Union) are easy to install.

4. The coil is the common standard part and waterproof type of water valve.

Introduction of imported PVC PLASTIC SOLENOID VALVE: Roch -- imported PVC plastic solenoid valve because of the unique opening and closing principle and scientific structure design, all parts of the product can be made of different polymer materials according to different chemical media, and because its pilot hole and pressure relief hole are dozens of times larger than the traditional valve, the reset spring is set outside the medium, therefore, it is not easy to plug, acid and Alkali resistance, corrosion resistance and long service life, and can be applied to a variety of chemical fluid medium. 2. importED PVC PLASTIC SOLENOID VALVE TECHNICAL PARAMETERS: Body Material: PVC POLYVINYL CHLORIDE WORKING PRESSURE: 0.01 ~ 1.0 MPA body diameter: DN2 ~ DN80MM control mode: normally open, normally closed, reverse (three-way) connection mode: internal thread, Flange, bonding, live connection power supply voltage: DC24V, AC220V standard, other voltage can be customized function options: with signal feedback, explosion-proof (explosion-proof grade Exmb/IIT4, ExdIICT5) three, imported PVC plastic solenoid valve working principle: through the control of the movement of the valve body to open or close different drain hole, and the oil hole is always open, the hydraulic oil will enter the different drain pipe, the Electromagnetic Valve has the airtight cavity, has the through hole in the different position, each hole connects the different oil pipe, the cavity center is the Piston, two electromagnets are two sides, the magnet coil on which side of the valve is energized is drawn to which side, and then the oil pressure is used to push the piston of the cylinder, which in turn drives the Piston Rod, which drives the mechanism. Thus by controlling the current of the electromagnet, the mechanical motion is controlled. importED PVC PLASTIC SOLENOID valve performance characteristics: 1, the main material is in line with the standards of drinking water plastic molding, health and safety. 2, in addition to the solenoid valve can be compatible with plastic pipe installation, but also with a variety of metal pipe butt. 3, screw thread, Flange and quick connection form (with live connection) installation is convenient. 4, the coil for the water valve commonly used standard parts and waterproof.
