| 品牌 : | 温州弘凌 | 型号 : | AH42F |
| 阀瓣开启高度 : | 全启式安全阀 | 结构形式 : | 弹簧式 |
| 加工定制 : | 是 | 连接形式 : | 法兰 |
| 材质 : | 碳钢 | 适用介质 : | 液化气 |
| 标准 : | 国标 | 流动方向 : | 单向 |
| 零部件及配件 : | 阀体 | 压力环境 : | 高压 |
| 类型(通道位置) : | 直角式 | 阀体构造 : | 封闭式 |

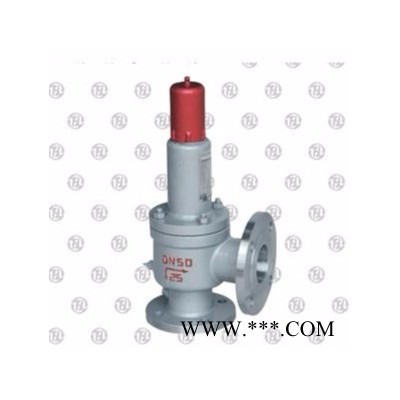

AH42F,A42FA42F 安全回流阀适用于工作温度在-40～80℃的 的液相出口管上，当进出口压差0.5MPa时 能自动回流入罐。
安全回流阀主要零部件材料：
| NO. | 零件名称 | AH42F-C A42F-C 材料 |
| 1 | 阀座 | 2Cr13 |
| 2 | 阀体 | WCB |
| 3 | 调节圈 | 2Cr13 |
| 4 | 反冲盘 | 2Cr13 |
| 5 | 阀瓣 | 2Cr13+PTFE |
| 6 | 导向套 | 2Cr13 |
| 7 | 阀盖 | ZG230-450 |
| 8 | 弹簧 | 50CrVA |
| 9 | 阀杆 | 2Cr13 |
| 10 | 调整螺杆 | 45 |
| 11 | 阀帽 | ZG200-400 |
安全回流阀结构尺寸图：
A42F 安全回流阀外形尺寸和连接尺寸：
| 型号 | 公称通径 | do | D | K | g | g1 | b | f | f1 | Z-ød | DN' | D1 | K1 | g2 | b1 | f' | Z1-ød1 | L | L1 | ≈H |
| AH42F-16C A42F-16C | 20 | 15 | 105 | 75 | 55 | 16 | 2 | 4-14 | 25 | 115 | 85 | 65 | 16 | 2 | 4-14 | 110 | 95 | 378 | ||
| 25 | 16 | 115 | 85 | 65 | 16 | 2 | 4-14 | 32 | 140 | 100 | 78 | 18 | 2 | 4-18 | 110 | 95 | 378 | |||
| 32 | 20 | 140 | 100 | 78 | 18 | 2 | 4-18 | 40 | 150 | 110 | 85 | 18 | 3 | 4-18 | 115 | 100 | 378 | |||
| 40 | 25 | 150 | 110 | 85 | 18 | 3 | 4-18 | 50 | 165 | 125 | 100 | 20 | 3 | 4-18 | 120 | 110 | 406 | |||
| 50 | 32 | 165 | 125 | 100 | 20 | 3 | 4-18 | 65 | 185 | 145 | 120 | 20 | 3 | 4-18 | 135 | 120 | 450 | |||
| 65 | 40 | 185 | 145 | 120 | 20 | 3 | 4-18 | 80 | 200 | 160 | 135 | 20 | 3 | 8-18 | 160 | 140 | 520 | |||
| 80 | 50 | 200 | 160 | 135 | 20 | 3 | 8-18 | 100 | 220 | 180 | 155 | 22 | 3 | 8-18 | 170 | 135 | 525 | |||
| 100 | 65 | 220 | 180 | 155 | 22 | 3 | 8-18 | 125 | 250 | 210 | 185 | 22 | 3 | 8-18 | 195 | 175 | 690 | |||
| 125 | 80 | 250 | 210 | 185 | 22 | 3 | 8-18 | 150 | 285 | 240 | 210 | 24 | 3 | 8-23 | 210 | 190 | 780 | |||
| 150 | 100 | 285 | 240 | 210 | 24 | 3 | 8-23 | 175 | 310 | 270 | 240 | 26 | 3 | 8-23 | 255 | 230 | 838 | |||
| 200 | 125 | 340 | 295 | 265 | 26 | 3 | 12-23 | 250 | 405 | 355 | 320 | 30 | 3 | 12-26 | 300 | 260 | 992 | |||
| 250 | 150 | 405 | 355 | 320 | 30 | 3 | 12-26 | 300 | 460 | 410 | 375 | 30 | 4 | 12-26 | 350 | 320 | 1266 | |||
| 300 | 220 | 460 | 410 | 375 | 30 | 4 | 12-26 | 400 | 580 | 525 | 485 | 36 | 4 | 16-30 | 370 | 350 | 1283 | |||
| 350 | 250 | 520 | 470 | 435 | 34 | 4 | 16-26 | 500 | 715 | 650 | 608 | 44 | 4 | 20-34 | 500 | 450 | 1520 | |||
| 400 | 280 | 580 | 525 | 485 | 36 | 4 | 16-30 | 500 | 715 | 650 | 608 | 44 | 4 | 20-34 | 500 | 450 | 1530 | |||
| AH42F-25 A42F-25 | 20 | 15 | 105 | 75 | 55 | 16 | 2 | 4-14 | 25 | 115 | 85 | 65 | 16 | 2 | 4-14 | 110 | 95 | 378 | ||
| 25 | 16 | 115 | 85 | 65 | 16 | 2 | 4-14 | 32 | 140 | 100 | 78 | 18 | 2 | 4-18 | 110 | 95 | 378 | |||
| 32 | 20 | 140 | 100 | 78 | 18 | 2 | 4-18 | 40 | 150 | 110 | 85 | 18 | 3 | 4-18 | 115 | 100 | 378 | |||
| 40 | 25 | 150 | 110 | 85 | 18 | 3 | 4-18 | 50 | 165 | 125 | 100 | 20 | 3 | 4-18 | 120 | 110 | 406 | |||
| 50 | 32 | 165 | 125 | 100 | 20 | 3 | 4-18 | 65 | 185 | 145 | 120 | 20 | 3 | 4-18 | 135 | 120 | 450 | |||
| 65 | 40 | 185 | 145 | 120 | 22 | 3 | 8-18 | 80 | 200 | 160 | 135 | 20 | 3 | 8-18 | 160 | 140 | 520 | |||
| 80 | 50 | 200 | 160 | 135 | 22 | 3 | 8-18 | 100 | 220 | 180 | 155 | 22 | 3 | 8-18 | 170 | 135 | 525 | |||
| 100 | 65 | 230 | 190 | 160 | 24 | 3 | 8-23 | 125 | 250 | 210 | 185 | 22 | 3 | 8-18 | 195 | 175 | 690 | |||
| 125 | 80 | 270 | 220 | 188 | 28 | 3 | 8-26 | 150 | 285 | 240 | 210 | 24 | 3 | 8-23 | 210 | 190 | 780 | |||
| 150 | 100 | 300 | 250 | 218 | 30 | 3 | 8-26 | 175 | 310 | 270 | 240 | 26 | 3 | 8-23 | 255 | 230 | 838 | |||
| 200 | 125 | 360 | 310 | 278 | 34 | 3 | 12-26 | 250 | 405 | 355 | 320 | 30 | 3 | 12-26 | 300 | 260 | 992 | |||
| 250 | 150 | 425 | 370 | 332 | 36 | 3 | 12-30 | 300 | 460 | 410 | 375 | 30 | 4 | 12-26 | 350 | 320 | 1266 | |||
| 300 | 220 | 485 | 430 | 390 | 40 | 4 | 16-30 | 400 | 580 | 525 | 485 | 36 | 4 | 16-30 | 370 | 350 | 1283 |
