无油真空泵 郑州宝晶PS系列真空泵

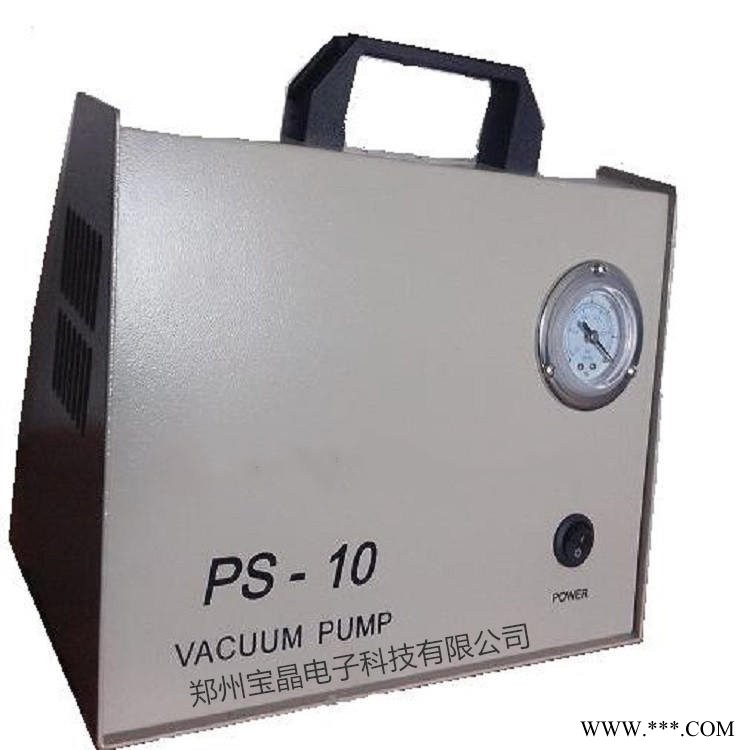

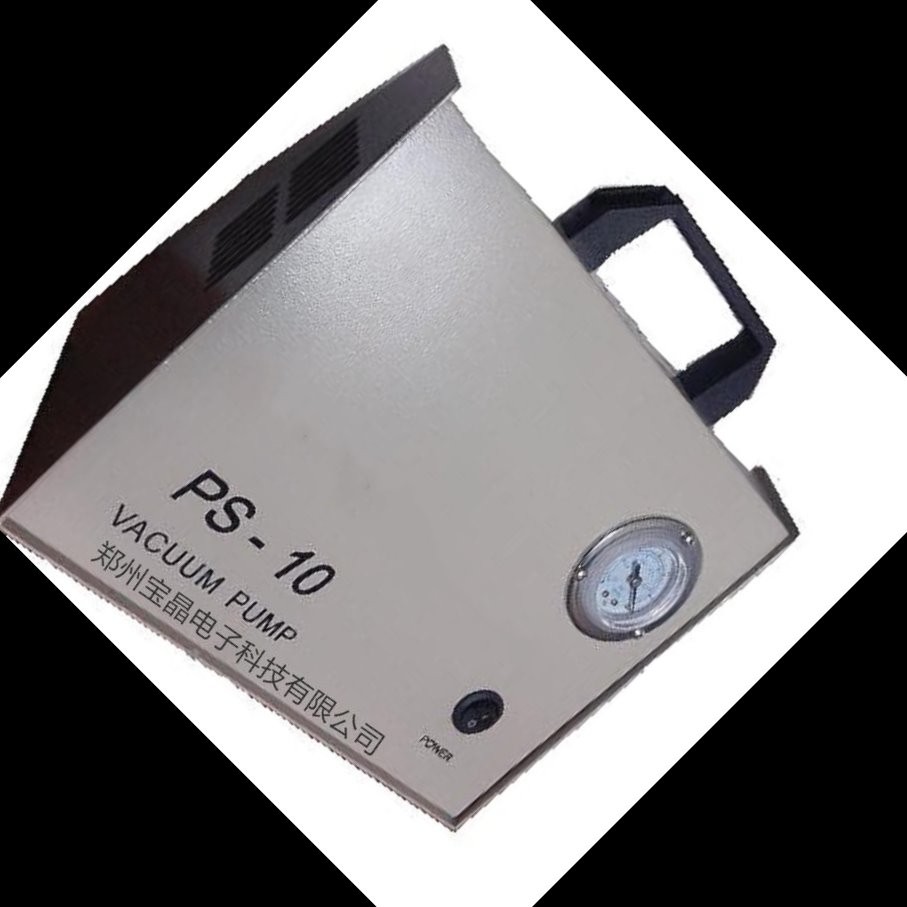

PS-10无油真空泵

PS-10无油真空泵仪器简介：

郑州宝晶电子科技有限公司的PS-10无油真空泵广泛应用于过滤、样品浓缩、固相萃取等装置中，是实验室重要的基础设备。单泵是通过橡胶膜片上下往复运动，引导气流通过泵头，形成真空状态。无油真空泵提供了完全洁净的真空环境，泵体本身无需保养，而且不会产生任何污染物。
These pumps are widely used for applications including filtration, sample concentration, solid phase extraction. They are the important basic instruments in the lab. One-stage pump feature up and down movement of flexible diaphragm during the mechanical stage which induces a flow of gas through the pump head, generating a vacuum. Thus they can provide a clean vacuum over the entire vacuum range. Dry pumps require little maintenance and don’t generate any waste material.

PS-10无油真空泵技术参数：

型号：                                             PS-10                 PS-10A
流量Free-air capacity (L/min)                10                     10
真空度 Max vacuum ( kPa)             80                             50~80
功率 Power （W）                              20                     20
工作温度 Max temperature          40℃ (104℉)           40℃ (104℉)
泵头数Stages                                       1                       1
工作时间 Best operating time           30min                 30min

品牌                                             郑州宝晶               郑州宝晶

PS-10无油真空泵主要特点：

1、采用结实的铝合金外壳，不锈钢或塑料提手，使用轻便，功能全面。
Portability and versatility with a tough, aluminum cover and stainless steel or plastic handle.

2. 提供了一个洁净的真空环境，不会对系统产生污染。
Provide a clean vacuum and won’t contaminate your system.

3. DU特的皮膜设计减少磨损，延长工作寿命。
Unique flat diaphragm design reduces wear and tear for long service life.

4. 内设过热自动保护装置防止电机损坏，延长泵的寿命。
Built-in heat-triggered protector prevents motor damage and extends pump life.
